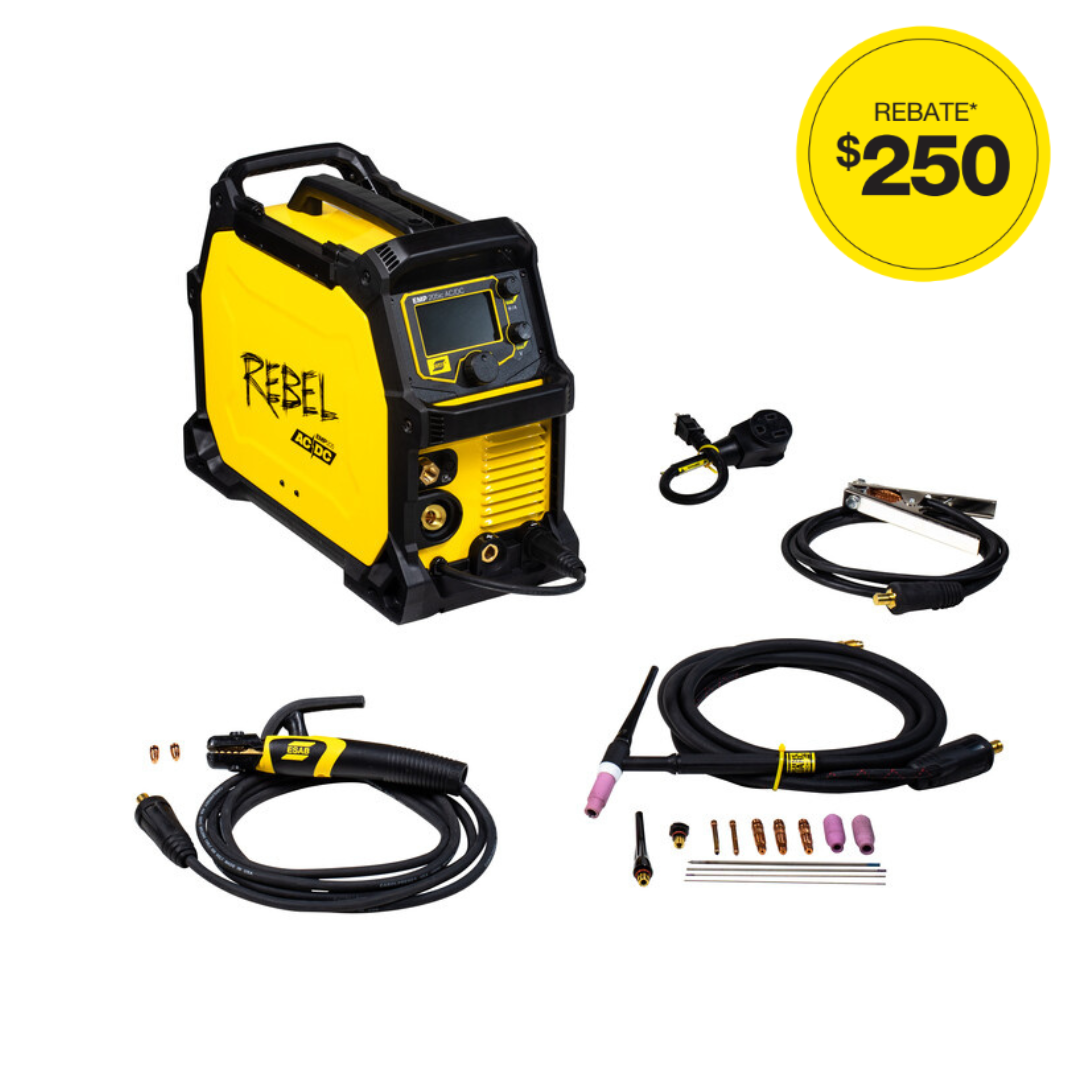

ESAB Rebel™ EMP 205ic AC/DC 0558102553
*** Go to esabburnandearn.com to submit your rebate request.
REQUIRED DOCUMENTS
-The sales receipt showing purchase made within valid offer dates.
-The serial number of the ESAB product purchased.
We made the impossible possible with the first-ever portable, all-process machine, complete with MIG, Flux-Cored, Stick, DC TIG, and now AC TIG capabilities, which means – yes – it TIG welds aluminum. It’s a TRUE all-in-one welding system that delivers best-in-class performance in each process in the most portable, durable, go anywhere, weld anything industrial package on the market today.
Top Features:
- True All-Process – excellent performance on MIG, Flux-Cored, STICK (including 6010 electrodes), DC TIG and AC TIG industrial applications
- Advanced AC TIG features like High Frequency starts, Frequency Adjustment up to 400 Hz, Expanded Balance & Offset Control and Dual Current. DC TIG also offers a Pulse Mode to 500 PPS and dual current.
- sMIG Technology - exclusive sMIG (“smart MIG”) feature continuously learns and adapts to the operator’s welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders
- Unmatched Portability and Durability – weighing in at only 49 lbs. (22 kg), Rebel™ EMP 205ic AC/DC with 5 handle roll cage can tackle any job around the shop or out at the job site.
- TFT Multilingual Display – packed full of features, Rebel EMP 205ic AC/DC has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting - giving you the ability to fine tune your welds for the most optimal performance
Specifications:
Primary Voltage: 120/230 VAC 1 ph +/- 10%, 50/60 Hz
Supply Voltage Range: 90-270V
Input Current Draw: 30 A (27.6 A) @ 25% Duty Cycle
Maximum Output
235 A / 26.0 V (MIG)
180 A / 27.2 V (Stick)
205 A / 18.2 V (DC TIG)
MIG (GMAW/FCAW) Welding Output
205 A / 24.3 V @ 25% Duty Cycle
150 A / 21.5 V @ 40% Duty Cycle
125 A / 20.3 V @ 60% Duty Cycle
110 A / 19.5 V @ 100% Duty Cycle
STICK (SMAW) Welding Output
170 A / 27.2 V @ 25% Duty Cycle
125 A / 25.0 V @ 60% Duty Cycle
100 A / 24.0 V @ 100% Duty Cycle
TIG (GTAW) AC/DC Welding Output
205 A / 18.2 V @ 25% Duty Cycle
125 A / 15.0 V @ 60% Duty Cycle
110 A / 14.4 V @ 100% Duty Cycle
AC TIG Fuctionality
Balance Range: 60 – 90%
Frequency Range: 25 – 400 HZ
DC TIG Functionality: Pulsed TIG (DC only) 0.1 – 500 PPS
Current Range: 5 – 235 A
MIG Welding Voltage Range: 12 – 26 V
Wire Feed Speed Range: 80 – 475 ipm (2.0 – 12.0 m/min)
Open Circuit Voltage: 68 V
Rated kVA: 7.9kVA (recommended >8kVA generator)
Power Factor at Max Current: 0.98
Efficiency at Max Current: 83%
Lead Cord Length: 6 ft. (1.8 m)
Approvals: CSA
Protection Class IP23
Dimensions:, L x W x H 23 x 9 x 16 in. (584 x 229 x 406 mm)
Weight: 49 lbs. (22 kg)
