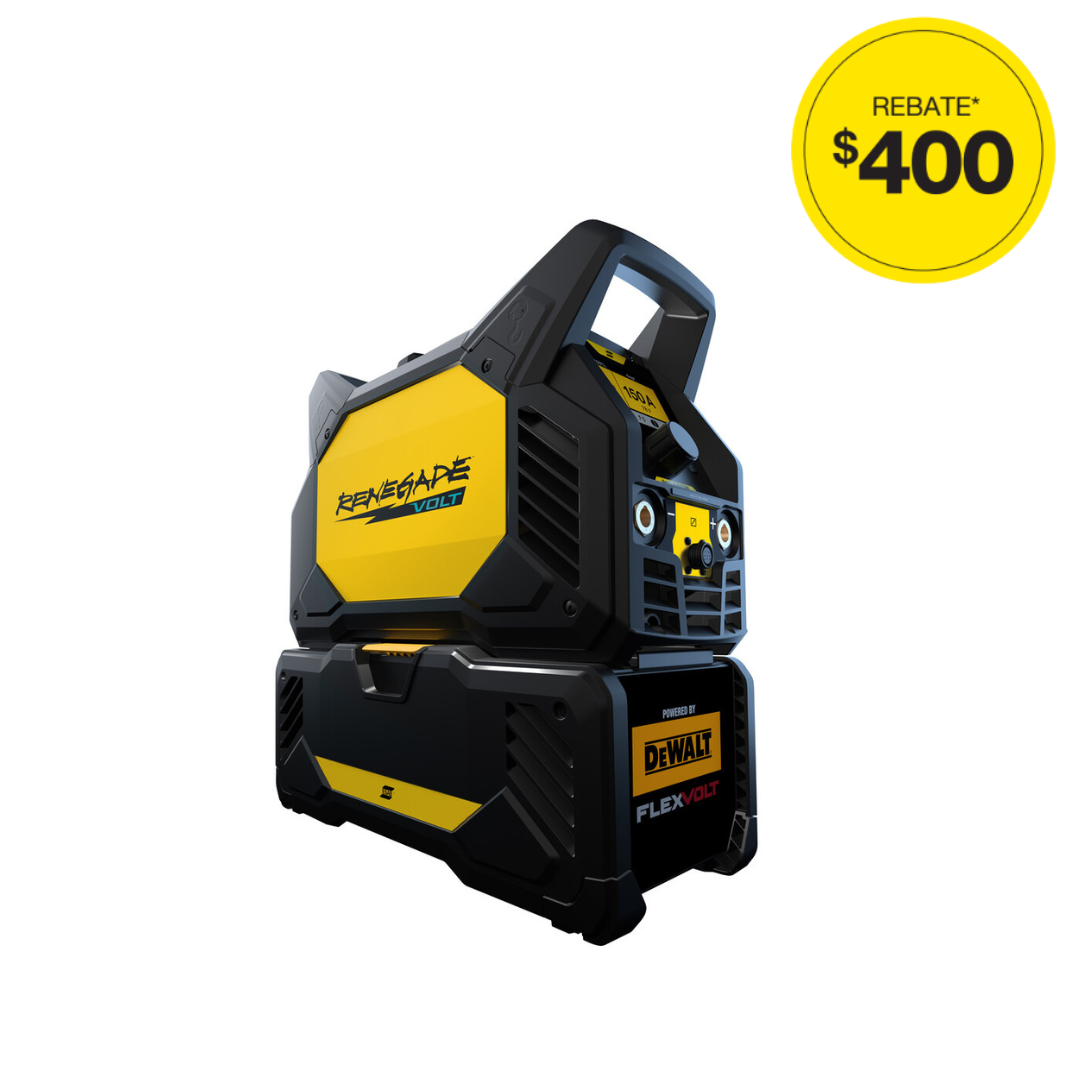

ESAB Renegade VOLT™ES 200i 0447800880
ESAB Renegade VOLT™ ES 200i is a portable, cordless battery powered, Stick (SMAW) and Live TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode.
This cordless welder runs on 6 Ah, 9 Ah, and 12 Ah DEWALT® FLEXVOLT® batteries. Renegade VOLT provides the power to burn up to 33 (E6013) electrodes on a single charge using four 12 Ah batteries, that are included in the package.*
Renegade VOLT is a highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power.
In AMP+ Hybrid Mode, Renegade VOLTsupplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g., 10A, 16A) or to provide more output when welding on 120V input.
Renegade VOLT features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive color-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator.
This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (6010) to optimize performance based on application or user preference.
*based on standard operating conditions
Top Features
- 200 A output on AC mains (230V)
- Up to 140 A output on battery power
- Includes (4) DEWALT FLEXVOLT 20V/60V max 12 Ah batteries
- AMP+ hybrid mode for extra power
- Lightweight and portable battery powered welder
- Durable, impact-resistant housing
- Sun-friendly, intuitive user interface
- Memory storage for welding parameters
Full Specifications:
Voltage |
120/230 VAC ±15%, 1ph, 50/60 Hz |
|||
Fuse, Slow |
16 A |
|||
Rated kVA |
6.0 kVA @ 230 VAC 2.7 kVA @ 120 VAC |
|||
Voltage Range |
90 –270 VAC |
|||
Energy Save Mode |
<50W |
|||
Welding Output, MMA (Mains Mode) |
120V110 A / 24.4 V @ 25 % 70 A / 22.8 V @ 60 % 55 A / 22.2 V @ 100 % |
230V200 A / 28.0 V @ 25 % 129 A / 25.2 V @ 60 % 100 A / 24.0 V @ 100 % |
||
Welding Output, MMA (Battery Mode) |
80V140 A / 25.2 V @ 18 % 110 A / 24.4 V @ 25 % 80 A / 23.2 V @ 60 % 60 A / 22.4 V @ 100 % |
|||
Welding Output, MMA (AMP+ Hybrid Mode) |
120V150 A / 26.0 V @ 25 % 90 A / 23.6 V @ 60 % 70 A / 22.8 V @ 100 % |
230V200 A / 28.0 V @ 25 % 129 A / 25.2 V @ 60 % 100 A / 24.0 V @ 100 % |
||
Welding Output, TIG (Mains Mode) |
120V140 A / 15.6 V @ 25 % 90 A / 13.6 V @ 60 % 70 A / 12.8 V @ 100 % |
230V200 A / 18.0 V @ 25 % 129 A / 15.2 V @ 60 % 100 A / 14.0 V @ 100 % |
||
Welding Output, TIG (Battery Mode) |
80V150 A / 16.0 V @ 18 % 115 A / 14.6 V @ 25 % 90 A / 13.6 V @ 60 % 70 A / 12.8 V @ 100 % |
|||
Welding Output, TIG (AMP+ Hybrid Mode) |
120V180 A / 17.2 V @ 25 % 130 A / 15.2 V @ 60 % 100 A / 14.0 V @ 100 % |
230V200 A / 18.0 V @ 25 % 129 A / 15.2 V @ 60 % 100 A / 14.0 V @ 100 % |
||
Setting Range, MMA (Mode) |
120V (Mains) 10 A / 20.6 -110 A / 24.4 V |
230V (Mains) 10A/20.6 -200 A / 28 V |
||
120V (AMP+ Hybrid) 10 A / 20.6 -150 A / 26 V |
230V (AMP+ Hybrid) 10 A / 20.6 -200 A / 28 V |
|
||
80V (Battery) 10 A / 20.6 –140 A / 25.6 V (80 VDC Battery Mode) |
|
|||
Setting Range, TIG (Mode) |
120V (Mains) 10 A / 10.4 -140 A / 15.6 V |
230V (Mains) 10 A / 10.4 -200 A / 18 V |
||
120V (AMP+ Hybrid) 10 A / 10.4 -180 A / 17.2 V |
230V (AMP+ Hybrid) 10 A / 10.4 -200 A / 18 V |
|
||
80V (Battery) 10 A / 10.4 -150 A / 16 V (80 VDC DC Mode) |
|
|||
Power Factor at Maximum Current |
0.99 |
|||
Efficiency at Maximum Current |
80% |
|||
Open Circuit Voltage (OCV) |
80 VDC |
|||
Operating Temperature |
-10 to +40°C (+14 to +104°F) |
|||
Protection Class |
IP23 |
|||
Certification Mark (Standards) |
ETL |
|||
Supply Plug |
NEMA 6-50P (CSA) |
|||
Dimensions L x Wx H, without battery box |
460 x 200 x 320 mm(18 x 8 x 13 in.) |
|||
Dimensions L x Wx H, with battery box |
480 x 220 x 485 mm (19 x 9 x 19 in.) |
|||
Weight, power source and battery box |
19 kg (41 lbs) |
|||
Weight, power source, battery box and 4 battery packs * |
24.5 kg (54 lbs) |
|||
* Weight when using a DEWALT FLEXVOLT 20V/60V MAX 12 Ah Battery, weight may vary when using other FLEXVOLT battery packs |
Electrode Consumption -Number of electrodes per charge |
|||
Electrode Size // Type |
E6013 |
E7018 |
E6010 |
2.5 x 250 mm (3/32 x 9.8 in.) |
33 |
26 |
31 |
2.5 x 350 mm (3/32 x 13.8 in.) |
22 |
17 |
21 |
3.2 x 350 mm (1/8 x 13.8 in.) |
14 |
10.5 |
12 |
Consumption when using four (4) DEWALT FLEXVOLT 20V/60V max 12 Ah Batteries, consumption may vary when using other FLEXVOLT battery packs or operating parameters or other brand electrodes. |
