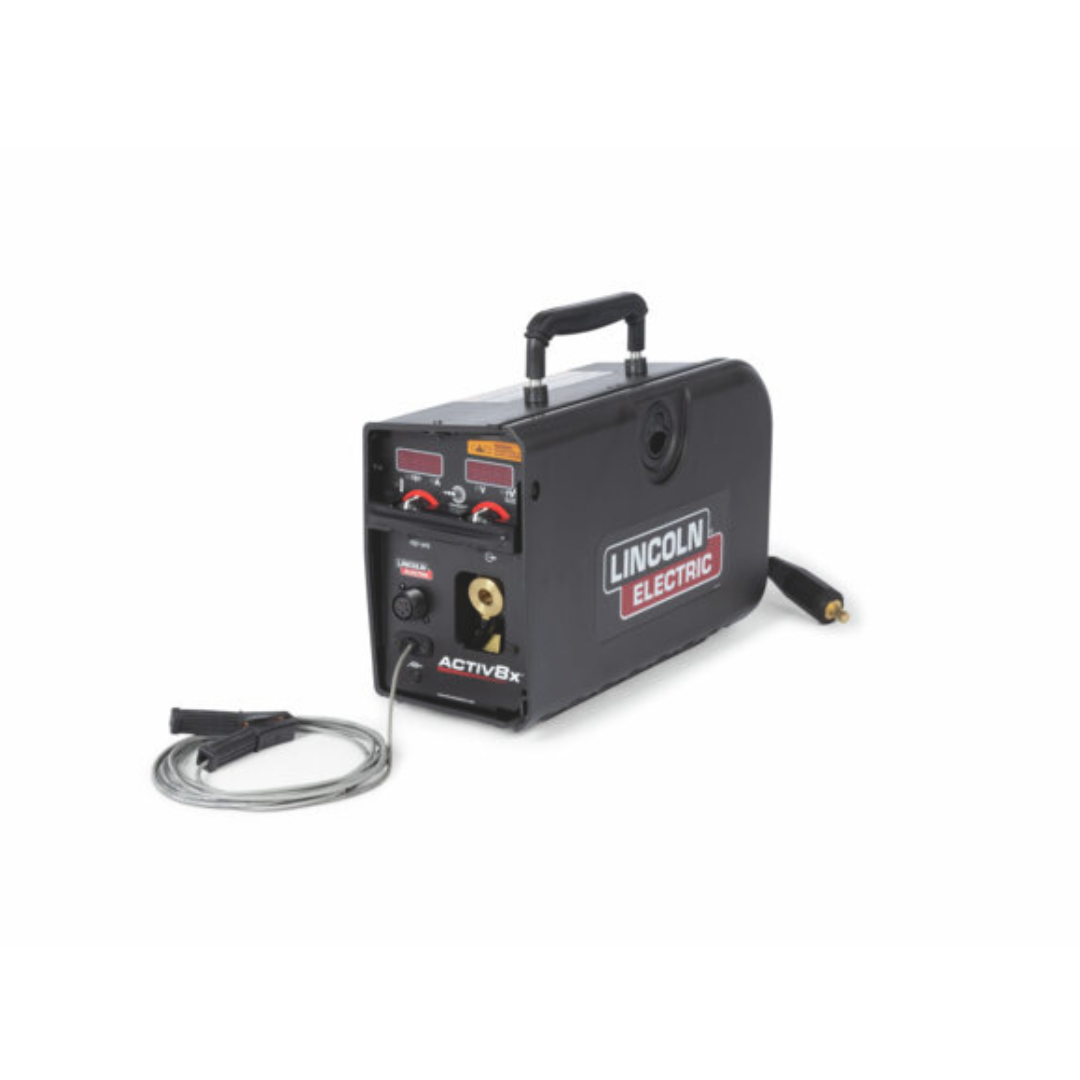

PORTABLE, SEMIAUTOMATIC WIRE FEEDER

Activate your shipbuilding, offshore, or construction operations with the Activ8X portable wire feeder with Crosslinc Technology. Small enough to fit through manways and light enough to carry around the site, the Activ8X wire feeder also allows remote control of the power source without the need for control cables via CrossLinc Technology. This includes True Voltage Technology™ (TVT™) which ensures you get the voltage you set at the arc, even when you are hundreds of feet away from the power source.

RUGGED

Impact resistant, flame retardant case provides rugged durability for tough conditions.

Potted PC Boards for moisture and corrosion protection.

Maxtrac® Wire Drive System - Heavy-duty cast aluminum wire drive system provides reliable feeding and durability.

Tachometer feedback delivers accurate wire feed speed.

COMPACT

Lightest construction feeder on the market today.

Accepts up to 8 in. (203mm) diameter wire spools.

CONNECTED

CrossLinc Technology allows for remote output control over the welding leads. No control cable needed!

True Voltage Technology (TVT) feature automatically compensates for voltage drops across long welding cables.

Features

• Impact resistant, flame retardant case provides rugged durability for tough conditions.
• Potted PC Boards for moisture and corrosion protection.
• Maxtrac® Wire Drive System – Heavy-duty cast aluminum wire drive system provides reliable feeding and durability.
• Tachometer feedback delivers accurate wire feed speed.
• Lightest construction feeder on the market today.

• Specifications

  Product Weights & Dimensions

  Dimensions (H x W x D)	11.8 in x 7.4 in x 18.7 in (298 mm x 188 mm x 475 mm)
  Net Weight	27.5 lbs (12.474 kg)

  Machines

  Max Rating

  330 A

  Wire and TIG Feeders

  Number of driven rolls	2 rolls
  Feeder type	Portable
  Configuration	Single
  Max spool diameter	200mm
  Communication Technology	CrossLinc
  UI type	Meters
  Max Wire Diameter (Solid)	0.052 in (1.3 mm)
  Max Wire Diameter (Cored)	5/64 in (2 mm)
  Feedhead Configuration	Single
  Wire Configuration	Single
  Power Source to Feeder Communication Connector Type	none
  Gun Bushing	Tweco #2-#4
  Wire Feed Speed Range (IPM)	50-700
  Max Spool Size (lbs)	15
  Wire Feeders Processes	MIG Flux Cored
  Safety Listing CSA	Yes
  Safety Listing UL	Yes

  Basic Specification

  Input Voltage

  15-110 VDC

  Application

  Typical Application

  Construction & Field Erection General Fabrication Heavy Equipment Heavy Fabrication Structural Fabrication Shipbuilding

  Warranty

  Warranty

  3 Years
