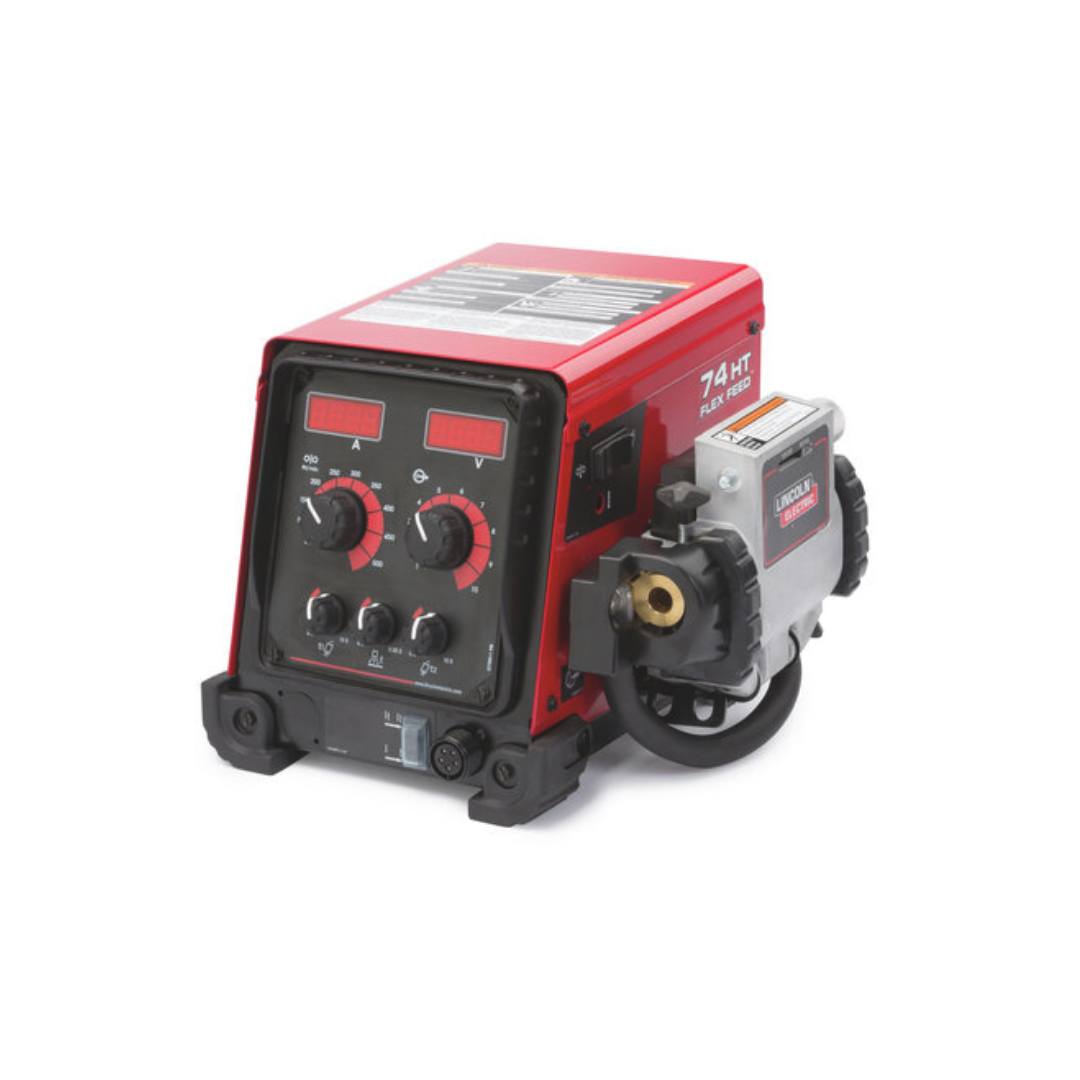

Semiautomatic Wire Feeder The Flex Feed™ 74 HT (High Torque) is a heavy duty industrial semiautomatic wire feeder for general and structural fabrication. The Flex Feed wire feeder is designed to be customized for each application.
- Basic and digital user interface streamlines operator setup
- Improved isolation and environmental protection
- Robust connection points allow for reliable operation in tough conditions
- Modularity allows for customizable configurations

Features

• Simple design
• Strong drive motor for large diameter wire applications
• Digital meters show actual current and voltage during welding
• Advanced MaxTrac® 4-roll wire drive design
• Modularity allows for customizable configurations

• Specifications

  Product Weights & Dimensions

  Dimensions (H x W x D)	13.3 in x 15.5 in x 23.6 in (338 mm x 394 mm x 599 mm)
  Net Weight	44 lbs (19.958 kg)

  Machines

  Max Rating

  600 A

  Wire and TIG Feeders

  Number of driven rolls	4 rolls
  Feeder type	Bench
  Configuration	Single
  Max spool diameter	Drum
  Communication Technology	analog
  UI type	Meters
  Max Wire Diameter (Solid)	3/32 in (2.4 mm)
  Max Wire Diameter (Cored)	0.120 in (3 mm)
  Feedhead Configuration	Single
  Wire Configuration	Single
  Power Source to Feeder Communication Connector Type	14-pin
  Gun Bushing	Tweco #2-#4
  Wire Feed Speed Range (IPM)	50-700
  Max Spool Size (lbs)	60
  Max Spool Size (kg)	30
  Wire Feeders Processes	MIG Flux Cored
  Safety Listing CSA	Yes
  Safety Listing UL	Yes

  Basic Specification

  Input Voltage

  24-42 VAC

  Application

  Typical Application

  Heavy Fabrication Structural Fabrication

  Warranty

  Warranty

  3 Years
