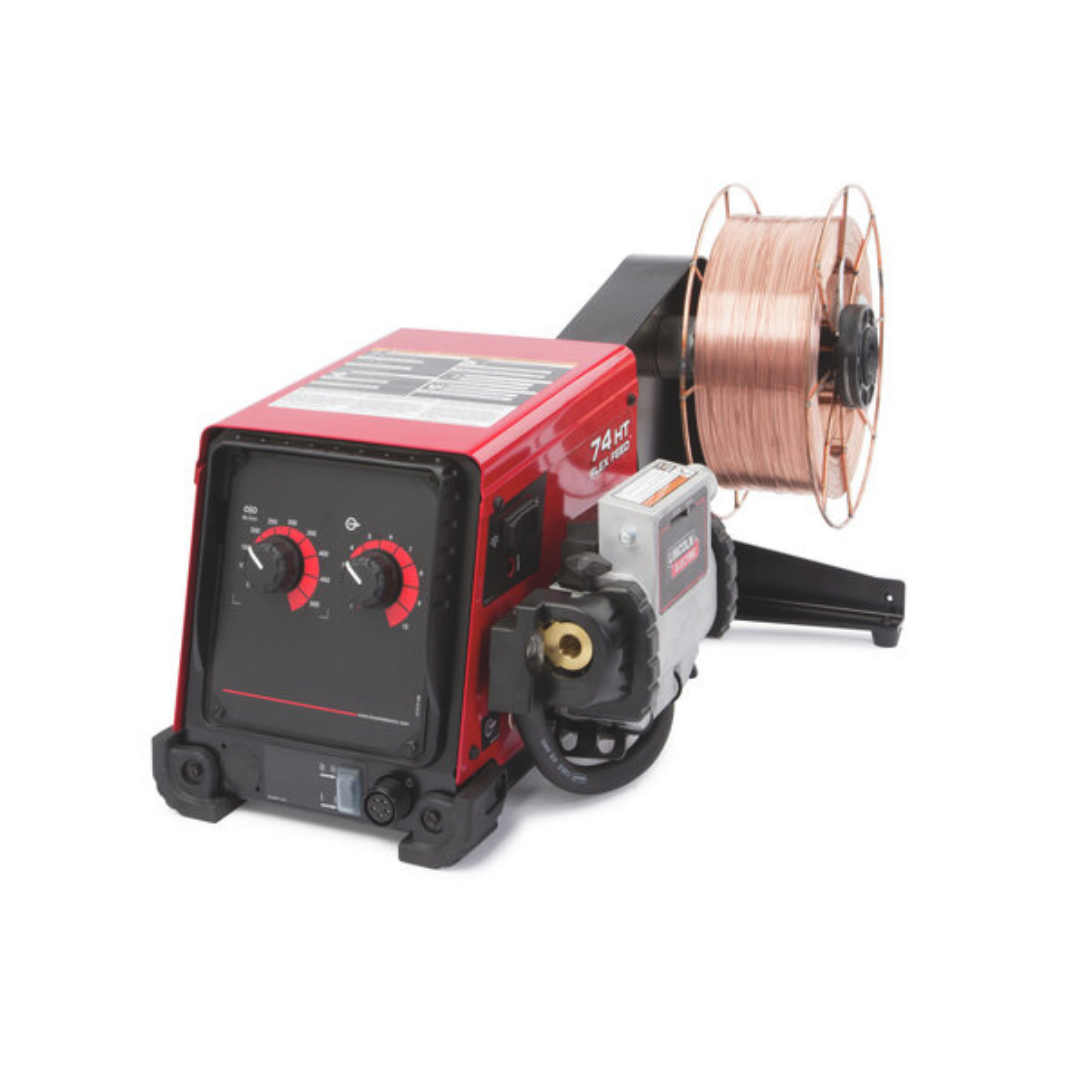

Flex Feed® 74 HT - Simple U/I, Std. Dty. Reel

K3883-5

Simple 4-drive roll wire feeder for heavy duty applications

DETAILS

Semiautomatic Wire Feeder The Flex Feed™ 74 HT (High Torque) is a heavy duty industrial semiautomatic wire feeder for general and structural fabrication. The Flex Feed wire feeder is designed to be customized for each application.
- Basic and digital user interface streamlines operator setup
- Improved isolation and environmental protection
- Robust connection points allow for reliable operation in tough conditions
- Modularity allows for customizable configurations

Features

  • Basic, simple user interface streamlines operator setup
  • Strong drive motor for large diameter wire applications
  • Robust connection points allow for reliable operation in tough conditions
  • Advanced MaxTrac® 4-roll wire drive design
  • Modularity allows for customizable configurations
  • Specifications

    Product Weights & Dimensions

    Dimensions (H x W x D) 13.3 in x 15.5 in x 23.6 in (338 mm x 394 mm x 599 mm)
    Net Weight 47 lbs (21.3 kg)

    Machines

    Max Rating 600 A

    Wire and TIG Feeders

    Number of driven rolls 4 rolls
    Feeder type Bench
    Configuration Single
    Max spool diameter Drum
    Communication Technology analog
    UI type Simple
    Max Rated Output Capable 600A
    Max Wire Diameter (Solid) 3/32 in (2.4 mm)
    Max Wire Diameter (Cored) 0.120 in (3 mm)
    Feedhead Configuration Single
    Wire Configuration Single
    Power Source to Feeder Communication Connector Type 14-pin
    Gun Bushing Tweco #2-#4
    Wire Feed Speed Range (IPM) 50-700
    Max Spool Size (lbs) 60
    Max Spool Size (kg) 30
    Wire Feeders Processes MIG
    Flux Cored
    Safety Listing CSA Yes
    Safety Listing UL Yes

    Basic Specification

    Input Voltage 24-42 VAC

    Application

    Typical Application Heavy Fabrication
    Structural Fabrication

    Warranty

    Warranty 3 Years
