Everything you need to get started with the HyperFill® process

Features

• The Power Feed® 84 Dual semiautomatic industrial wire feeder is built on a modular platform to be used in a variety of applications.
• Simple & Customizable Controls - Auto Settings simplify process setup with eight user memories for complete WPS recall
• The Cool Wave™ 20S water cooler is designed for heavy duty and high current applications providing appropriate cooling for torches rated up to 600 amps at 100% duty cycle.
• Featuring sensors to monitor coolant flow, capacity, and temperature, the Cool Wave™ 20S will automatically halt welding if faults are detected as well as hibernate when welding is idle. *Coolant and regulators must be ordered separate.
• * Power source not included
• * Power cables not included
• * Coolant not included

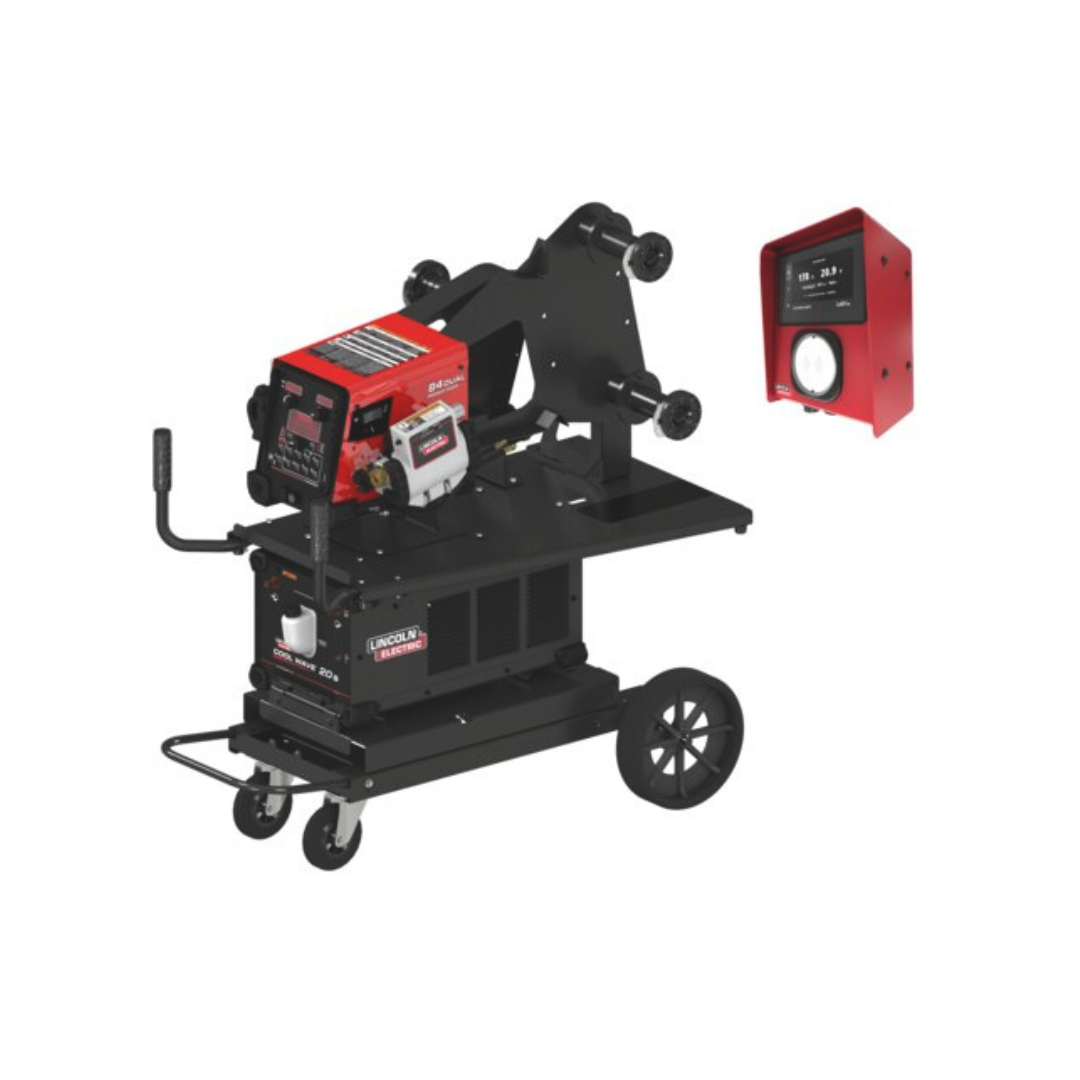

• What's Included

  • Power Feed® 84 Dual Bench Wire Feeder - U/I No Reel USB (K3330-3)
  • Cool Wave 20S (K4713-1)
  • Magnum PRO 500 Water Cooled Gun (15 ft) (K4522-2-10-564)
  • M-F Water Hose Kit (7ft) (K4544-7)
  • Undercarriage Kit (K163-1)
  • Incoming Ball Bearing Bushing for Lincoln Conduit (K1551-2)
  • HyperFill Drive Roll Kit (.035 -.040 in or 0.9 -1.0 mm) (KP4388-1)
  • HyperFill Diffuser (KP4481-1)
  • HyperFill Contact Tip .035 in (KP4482-035)
  • Magnum® PRO Water-Cooled Gas Nozzle - Thread-On 1/8 in. Recess 3/4 in. ID (KP4523-1-75R)
  • Gateway Pendant (K4997-1)
  • Inert Gas Y Fitting (KP4773-1)
  • Flowmeter and Regulator Kit (3100856)
  • Cable Liner 1/16-5/64 in (1.6-2.0 mm) 15 ft (4.6 m) (KP44-564-15)
  • Wire Reel Stand - Standard Duty (K3342-1)
  • Magnum® PRO Curve™ 300 Welding Gun (K2951-2-10-45)
  • HyperFill Bench Top Kit (K4630-2)
  • HyperFill Undercarriage Kit (K4630-3)

  • Specifications

    Machines

    Machines Communication Technology

    ArcLink

    Wire and TIG Feeders

    Number of driven rolls	4 rolls
    Feeder type	Bench
    Configuration	Single
    Feedhead Configuration	Single
    Wire Configuration	Hyperfill

    Application

    Typical Application

    Heavy Fabrication

    Warranty

    Warranty

    5 Years
