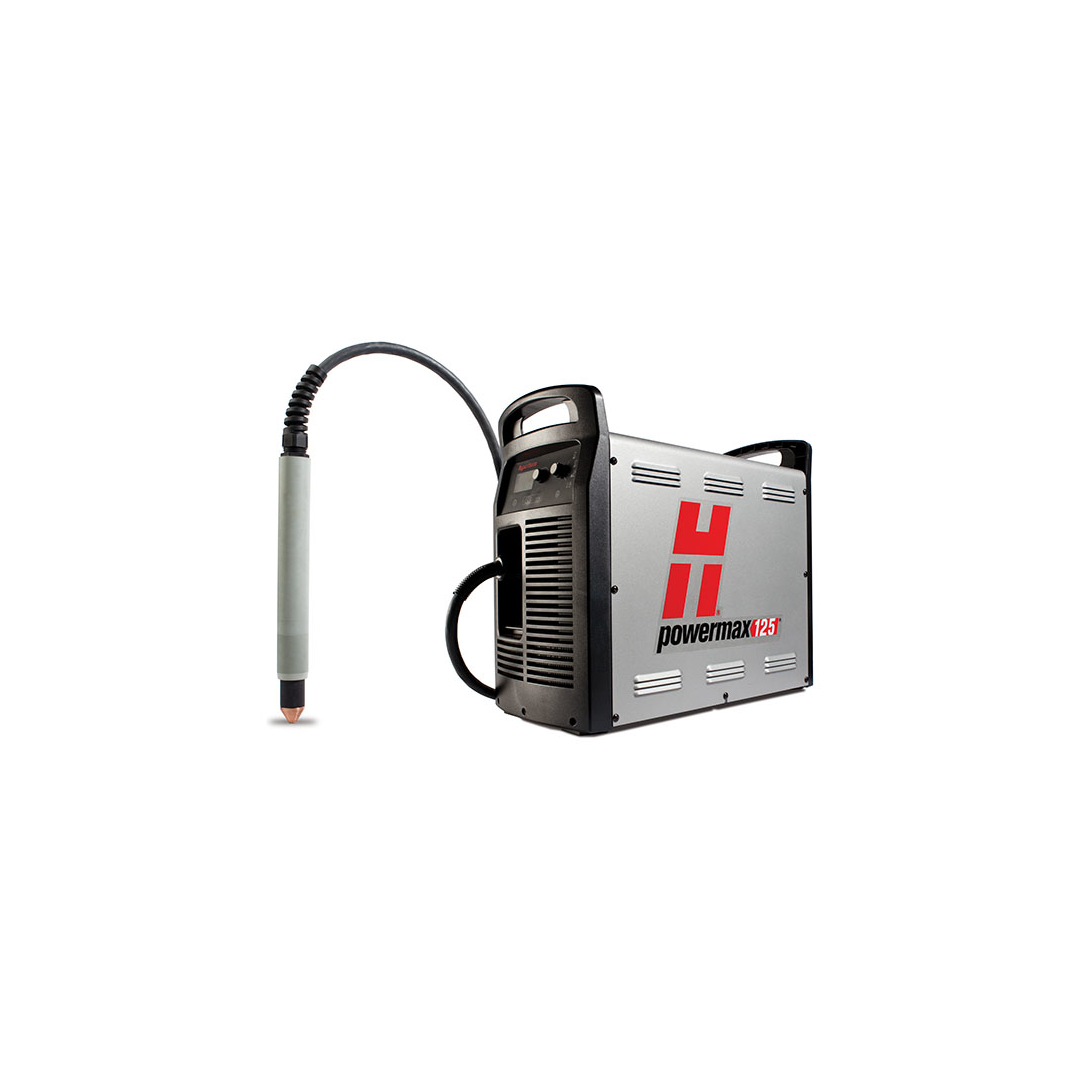

Hypertherm 059541 Powermax125 CSA 480V Machine System Torch Combo 180º M 15.2 m (50 ft) and 85º H 7.6 m (25 ft)

Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1″) mechanized pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Eleven Duramax® Hyamp™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.

Specifications

Input voltages CSA 480/600 V, 3-PH, 50/60 Hz
CE 400 V, 3-PH, 50/60 Hz
CCC 380 V, 3-PH, 50/60 Hz
Input current @ 21.9 kW 300/400/480/600 V, 38/36/31/24 A
Output current 30–125 A
Rated output voltage 175 VDC
Duty cycle @ 40° C (104° F) 100% @ 125 A
Open circuit voltage (OCV)
  • 400/600 CSA: 320 VDC
  • 380 V CCC: 290 VDC
  • 400 V CE: 305 VDC
Dimensions with handles 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H)
Weight with 7.6 m (25′) torch
  • 480 V, 47,9 kg (105.7 lbs.)
  • 600 V, 47,5 kg (104.7 lbs.)
  • 380 V, 45,2 kg (99.6 lbs.)
  • 400 V, 48,9 kg (107.8 lbs.)
Gas supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate/pressure		 Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)
Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)
Input power cable length 3 m (10′) *
Power supply type Inverter – IGBT
Engine drive requirement 40 kW for full 125 A output
Certifications CSA-certified for use in the Americas and Asia, except China.
CE, C-Tick, CU/GOST, Ukr, and Serbian – for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.
