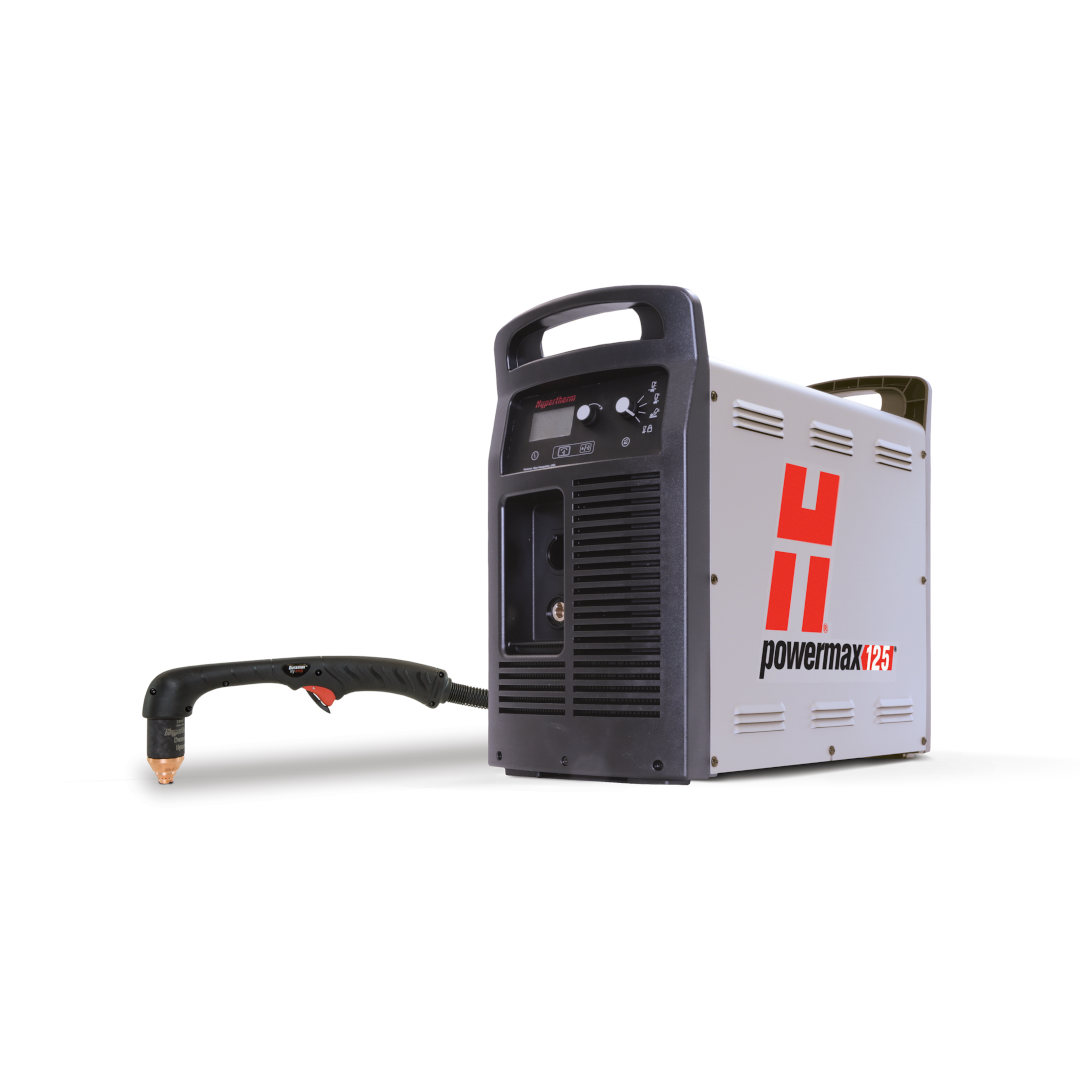

Hypertherm 059546 Powermax125 CSA 600V Hand System with CPC Port *FREE GIFTS*
***PICK UP A POWERMAX FOR THE HOLIDAYS AND REDEEM END-USER PROMOs.***
View details at https://myhyperperks.com
Claim a FREE promo package valued at up to $1,000!
Put a little in your pocket. Pick up a Powermax® before the end of the year and get a consumable/accessories promo package valued at up to —FREE. This holiday season, invest in yourself and the new year.
Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1″) mechanized pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Eleven Duramax® Hyamp™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.
| Input voltages | CSA | 480/600 V, 3-PH, 50/60 Hz |
|---|---|---|
| CE | 400 V, 3-PH, 50/60 Hz | |
| CCC | 380 V, 3-PH, 50/60 Hz | |
| Input current @ 21.9 kW | 300/400/480/600 V, 38/36/31/24 A | |
| Output current | 30–125 A | |
| Rated output voltage | 175 VDC | |
| Duty cycle @ 40° C (104° F) | 100% @ 125 A | |
| Open circuit voltage (OCV) |
|
|
| Dimensions with handles | 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H) | |
| Weight with 7.6 m (25′) torch |
|
|
| Gas supply | Clean, dry, oil-free air or nitrogen | |
| Recommended gas inlet flow rate/pressure |
Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi) Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi) |
|
| Input power cable length | 3 m (10′) * | |
| Power supply type | Inverter – IGBT | |
| Engine drive requirement | 40 kW for full 125 A output | |
| Certifications | CSA-certified for use in the Americas and Asia, except China. CE, C-Tick, CU/GOST, Ukr, and Serbian – for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China. |
|
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. | |
