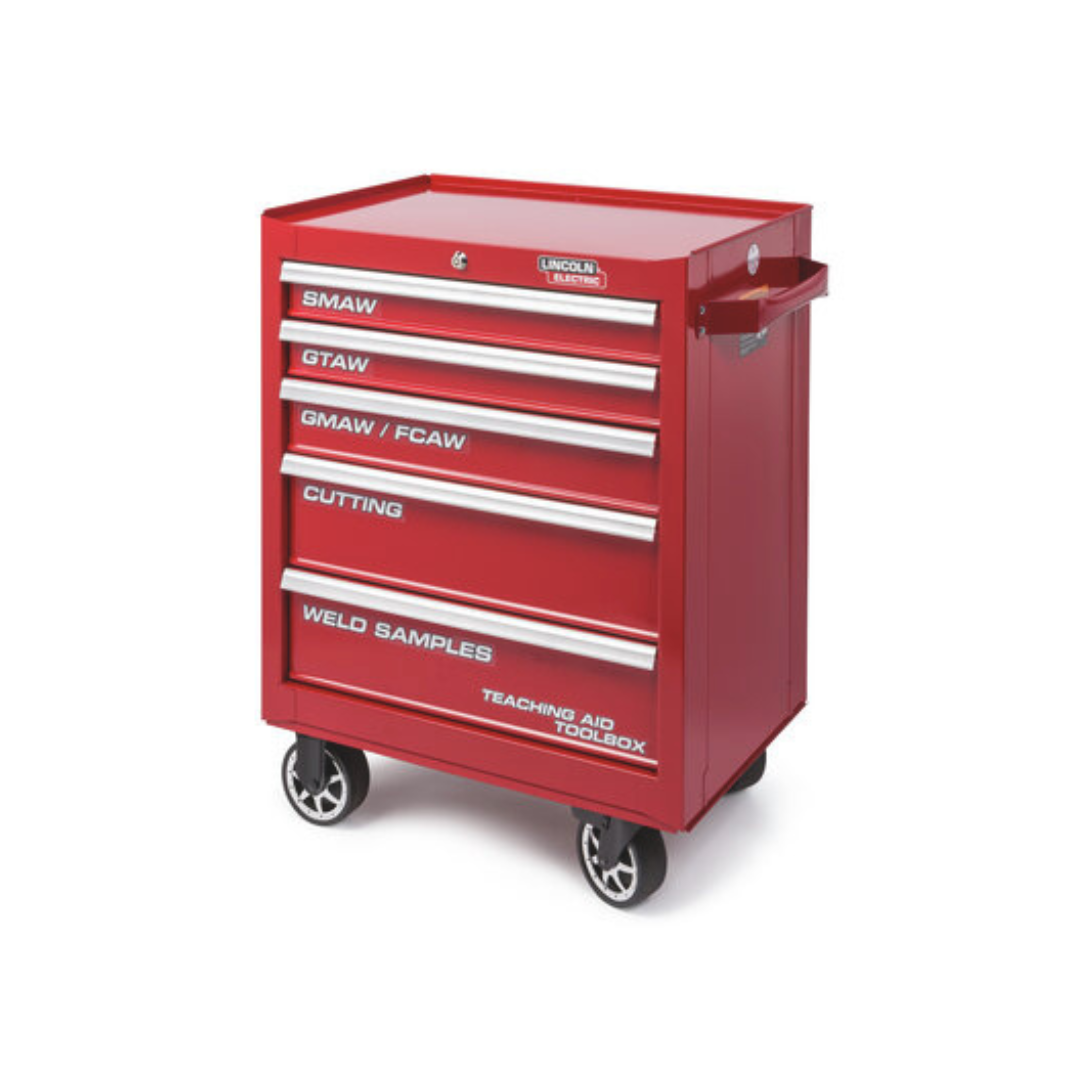

Lincoln Electric Teaching Aid Toolbox K4442-1

Details

WELDING TRAINING, UP CLOSE AND PERSONAL

Build on the Basics

• The Teaching Aid Toolbox is fully supported with Lincoln Electric U/LINC® curriculum lesson plans and more

Bridge the Classroom and the Lab

• Bring actual welding and cutting tools into the classroom to better illustrate the principles of each process
• Boosts learning to the next level of understanding by illustrating joints, cuts, equipment and related techniques
• Included weld sample coupons allow instructors to illustrate various welding joints and typical beads
• A set of weld discontinuity flashcards allow you to show and discuss common weld flaws

Features

• Comprehensive array of tools and accessories from various welding and cutting processes
• Cutaway Harrisgas regulator and oxyfuel torch allow students to get familiar with the tool's structure, operation, and application.
• Fully supported with Lincoln Electric U/LINC curriculum lesson plans and more
• Bring actual welding and cutting tools into the classroom to better illustrate the principles of each process
• Boosts learning to the next level of understanding by illustrating joints, cuts, equipment and related techniques

Included:

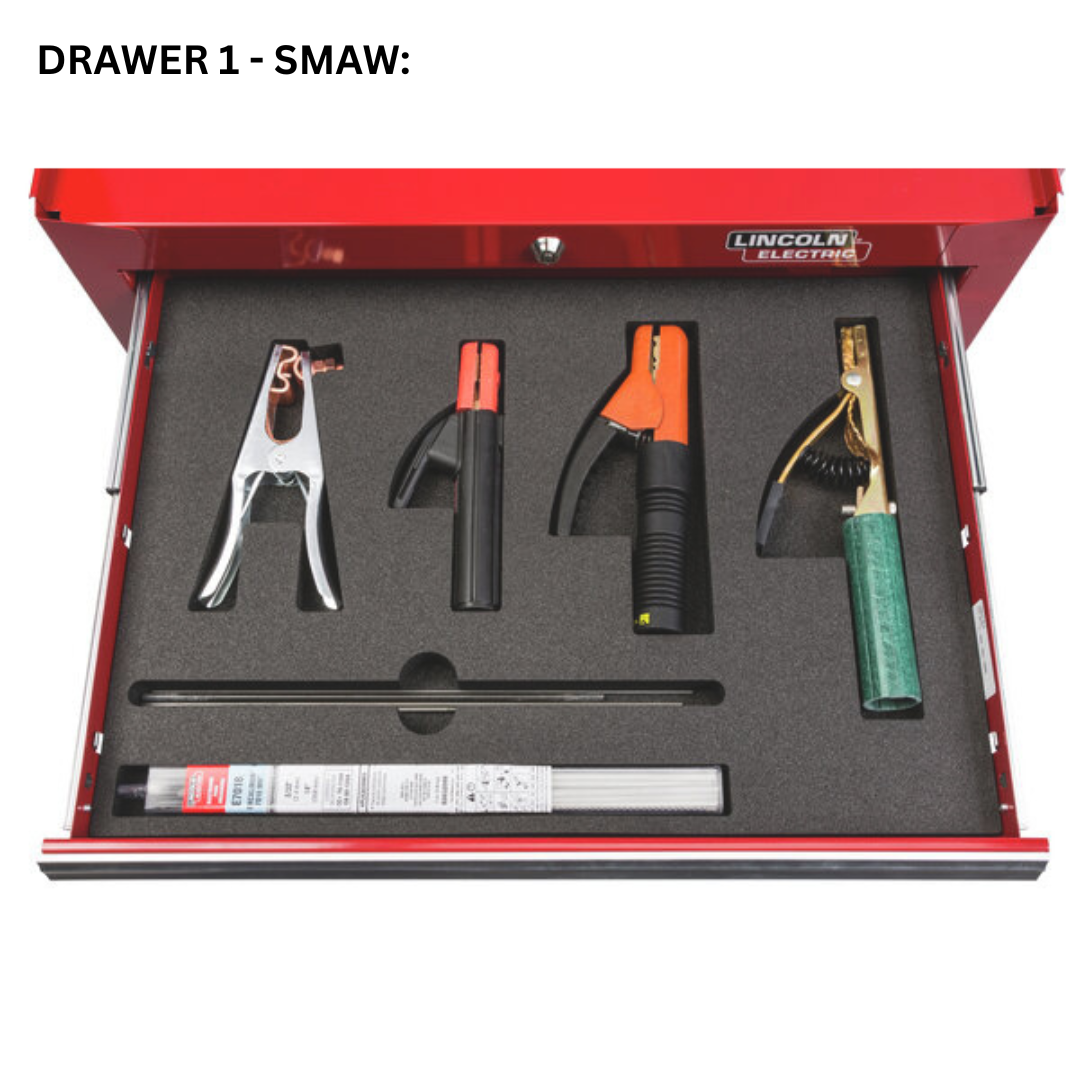

DRAWER 1 - SMAW:

(1) T300 Electrode Holder

(1) EH-305HD Magnum® Electrode Holder

(1) 200A Electrode Holder

(1) GC-300 Work Clamp

(1) 3/32 in. (2.4 mm) Bare Stick Electrode Rod

(1) 1/8 in. (3.2 mm) Bare Stick Electrode Rod

(1) 5/32 in. (4.0 mm) Bare Stick Electrode Rod

(1) Excalibur® 7018 MR 3/32 in. (2.4 mm) 1 lb. Tube Stick Electrode

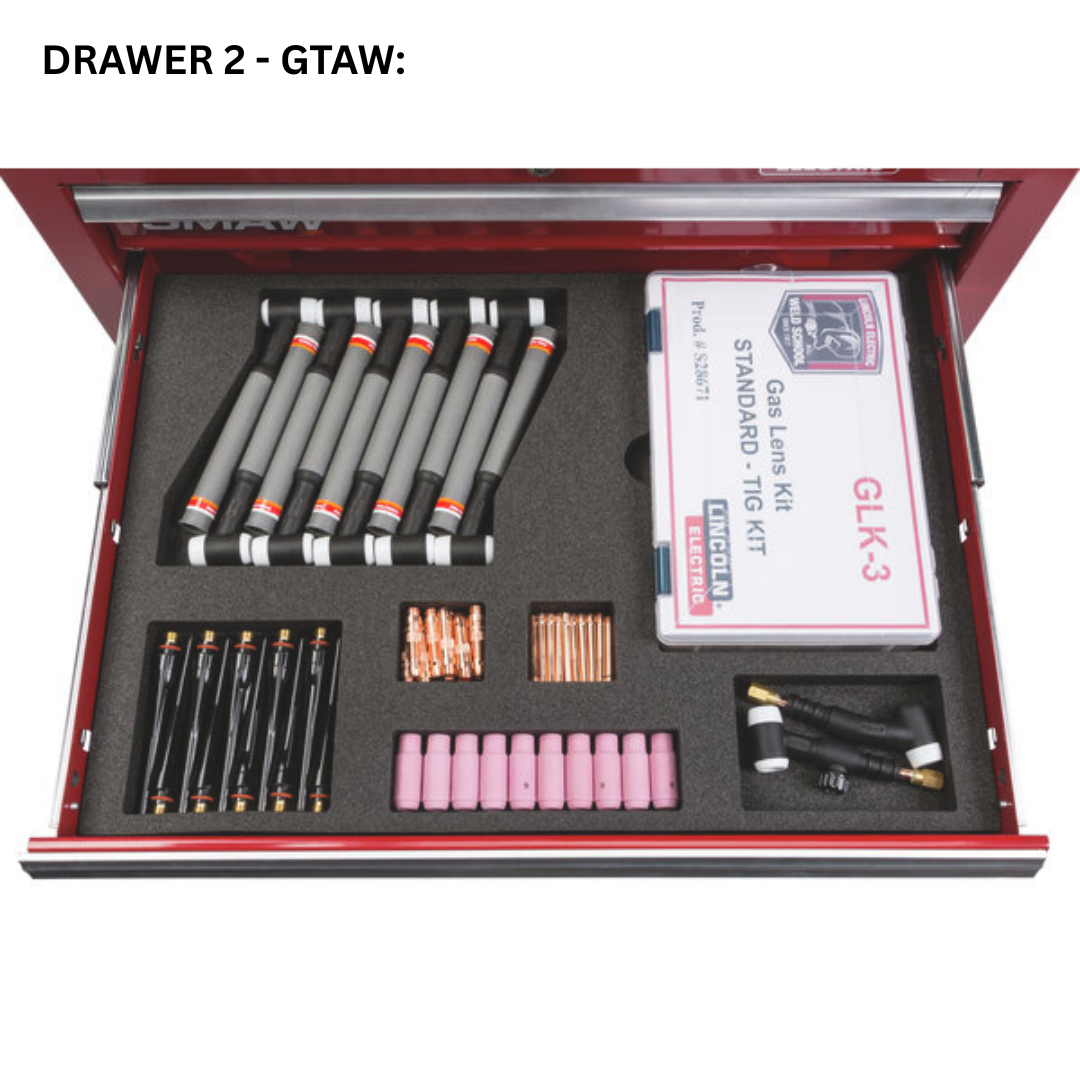

DRAWER 2 - GTAW:

(1) PTA-17V Torch Body

(1) PTA-17V Torch Body

(1) PTA-17F Torch Body

(1) PTA-17 Torch Handle

(1) PTA-17 3/32 in. (2.4 mm) Collet

(1) PTA-17 3/32 in. (2.4 mm) Collet Body

(1) PTA-17 Backcap- Long

(1) PTA-17 Alumina Nozzle #6 | GLK-3 Basic TIG Kit

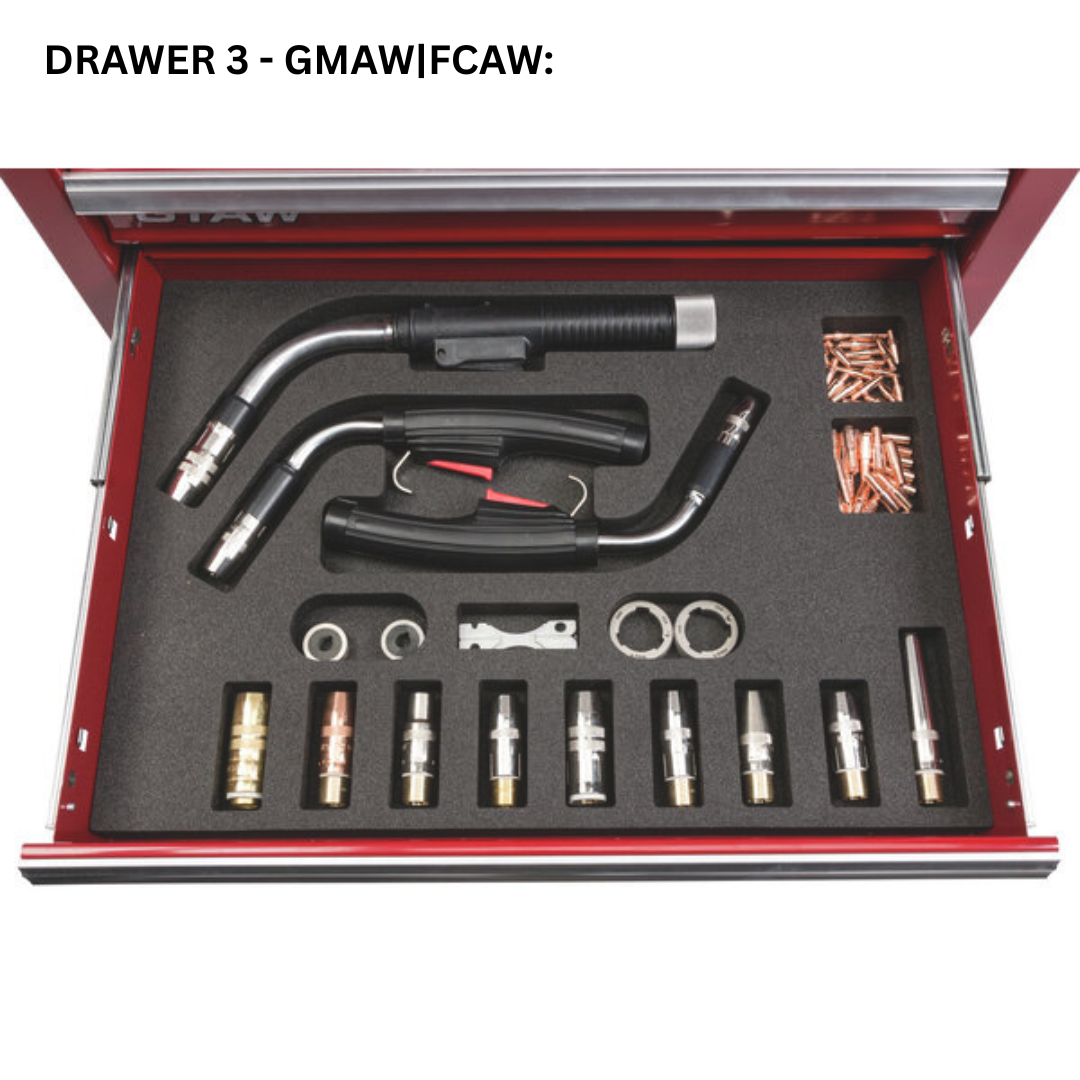

DRAWER 3 - GMAW|FCAW:

(1) Magnum® PRO 550 Assembly

(1) Magnum® PRO 250L Assembly

(1) Flux-Cored/MIG Wire Drive Roll 0.035 - .045 in. (0.9 - 1.1 mm) Knurled

(1) Drive Roll Kit Combination 0.035/.045 in. (0.9-1.1 mm) Solid Wire Smooth

(1) Magnum® PRO MIG Gun Diffuser - 550A Slip-On

(1) Magnum® PRO Gas Nozzle 550A - Slip-On Flush 3/4 in. ID

(1) Magnum® PRO Gas Nozzle 350A - Thread-On Flush 1/2 in. ID

(1) Magnum® PRO Gas Nozzle 350A - Thread-On Recessed 1/2 in. ID

(1) Magnum® PRO Bottleneck Gas Nozzle 350A - Thread-On Flush 1/2 in. ID

(1) Magnum® PRO Gas Nozzle 350A - 1/8 In. Stickout Thread-On1/2 in. ID

(1) Magnum® PRO Gas Nozzle 350A Flush - Thread-On 3/8 in. ID| Magnum® PRO MIG Gun Diffuser - 350A Slip-On

(1) Magnum® PRO Gas Nozzle 350A - Flush Slip-On 1/2 in. ID. Magnum® PRO MIG Gun Diffuser - 350A Extended Reach - Thread-On. Magnum® PRO Gas Nozzle 350A- Extended Reach Thread-On Recessed- 1/2 in. ID

(1) Magnum® PRO Contact Tip 550A 0.035 in Dia.

(1) Magnum® PRO Contact Tip 350A Tapered 0.035 in Dia.

(1) Magnum® PRO 350 Gas Diffuser Thread-On

(1) Magnum® PRO Barrel 550 Nozzle Assembly 550A Thread-On | Recessed 5/8 in. ID

(1) Magnum® PRO MIG Gun Diffuser - 550A Thread-On

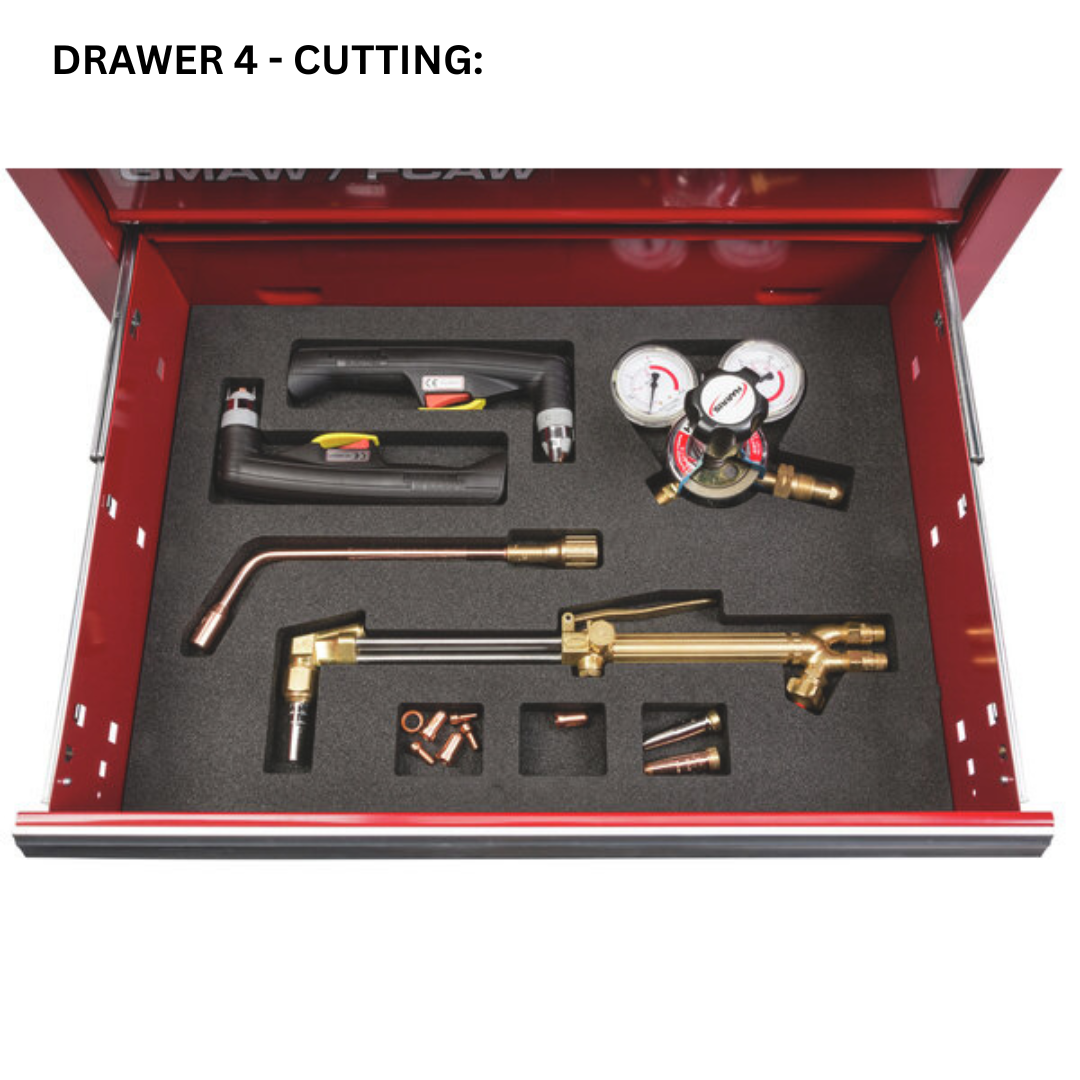

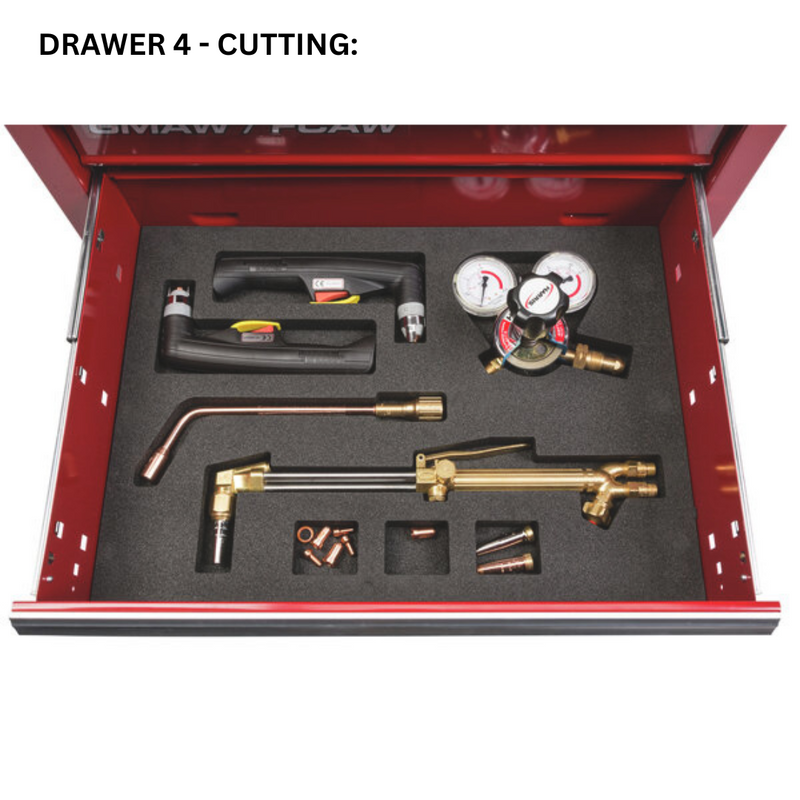

DRAWER 4 - CUTTING:

(1) Tomahawk® LC40 Plasma Cutting Torch Assembly

(1) Tomahawk® LC40 Electrode

(1) Tomahawk® LC40 Swirl Ring

(1) Tomahawk® LC40 Nozzle (40 A)

(1) Cutaway Harris® Oxyfuel Torch

(1) Cutaway Harris® Gas Regulator

(1) Acetylene Heating Assembly

(1) Acetylene Two-Piece Preheat Tip

(1) Cutting Tip

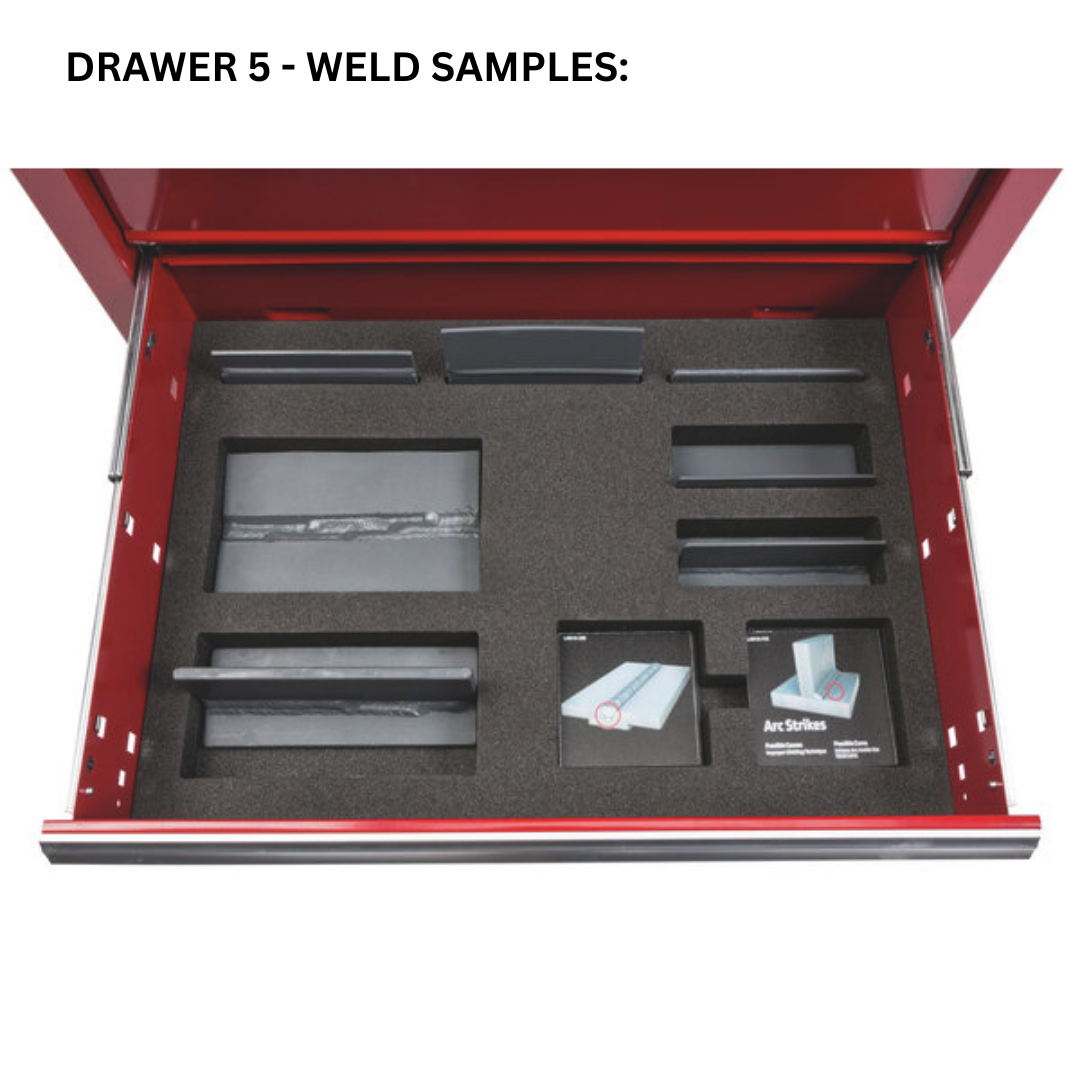

DRAWER 5 - WELD SAMPLES:

(1) Butt Joint - 2 x 6 in. (50.8 x 152.4 mm) 10 ga.

(1) Corner Joint - 2 x 6 in. (50.8 x 152.4 mm) 10 ga.

(1) 2 x 6 in. (50.8 x 152.4 mm) 10 ga.

(1) Lap Joint - 2 x 6 in. (50.8 x 152.4 mm) 10 ga.

(1) Tee Joint - 2 x 6 in. (50.8 x 152.4 mm) 10 ga.

(1) Three Pass T Joint 100/75/50 -1/4 x 3 x 8 in. (6.35 x 76.2 x 203.2 mm)

(6) Pass Groove

(1) 100/83/66/50/33/16 -3/8 x 8 x 7 in. (9.53 x 203.2 x 177.8 mm)

(1) Discontinuities Flash Cards

Click the text below to view the spec sheet and brochure

**Teaching Aid Toolbox PDF**
