Lincoln Electric Velion® Single Charge Session, CCS1 NACS Dual Cable Dispenser

Details

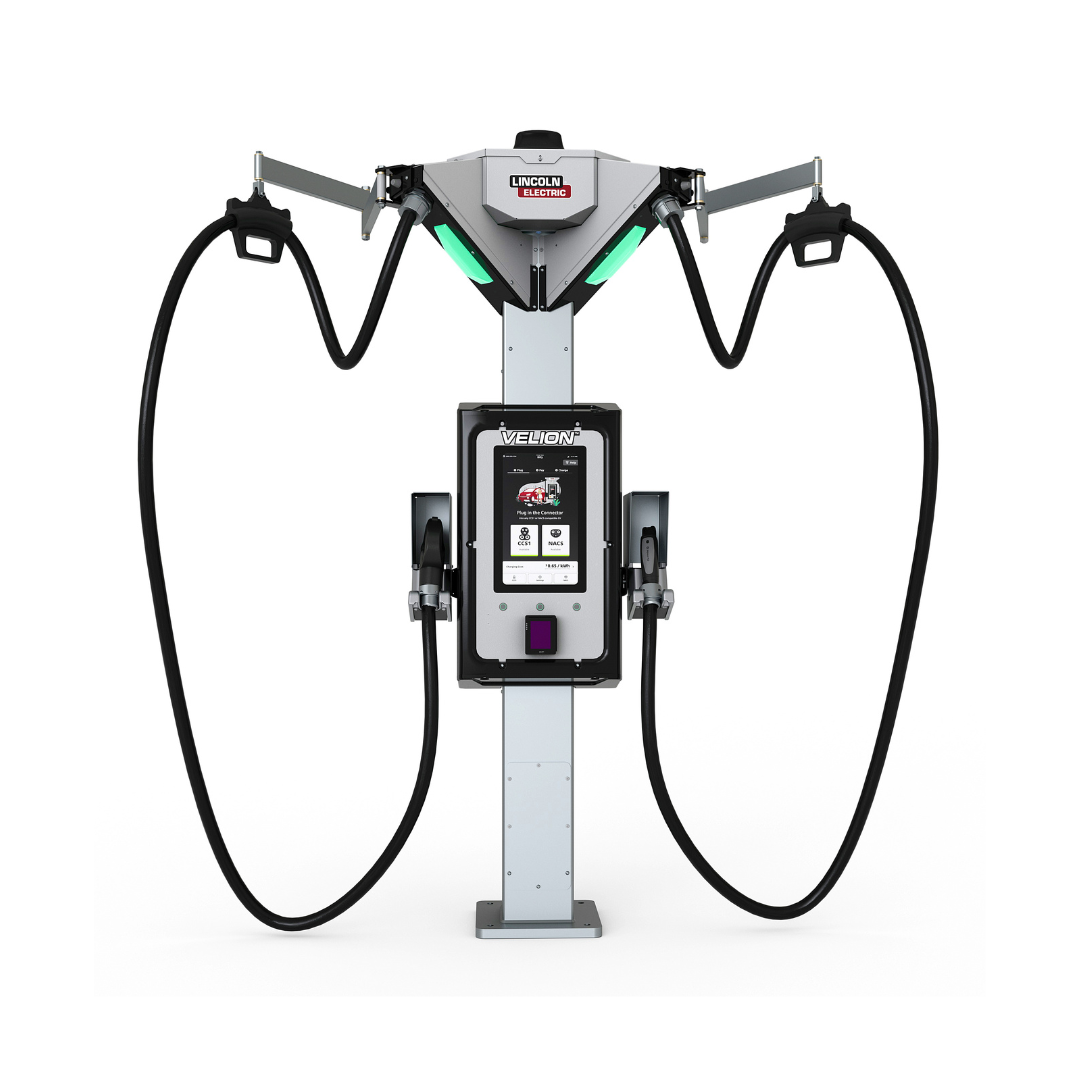

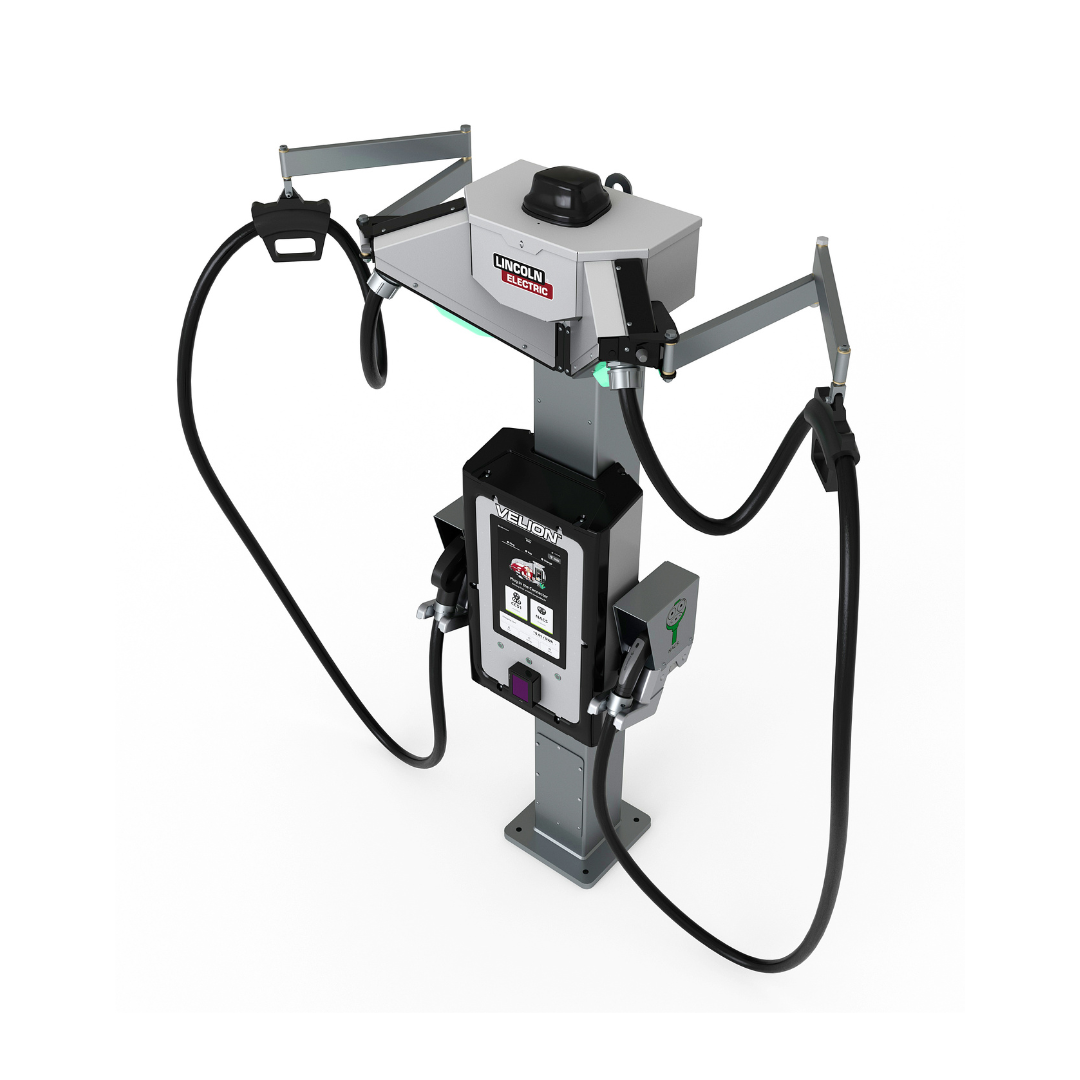

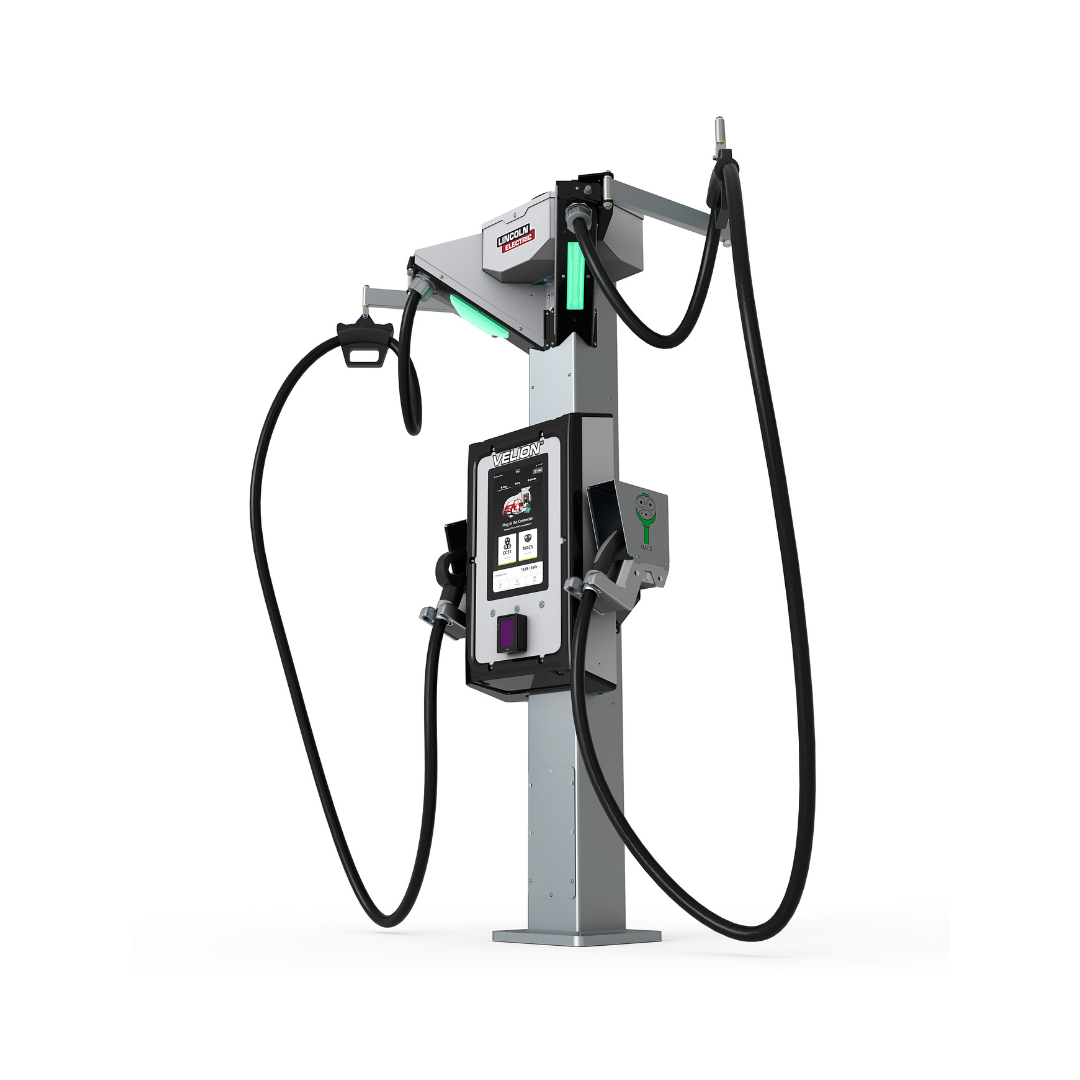

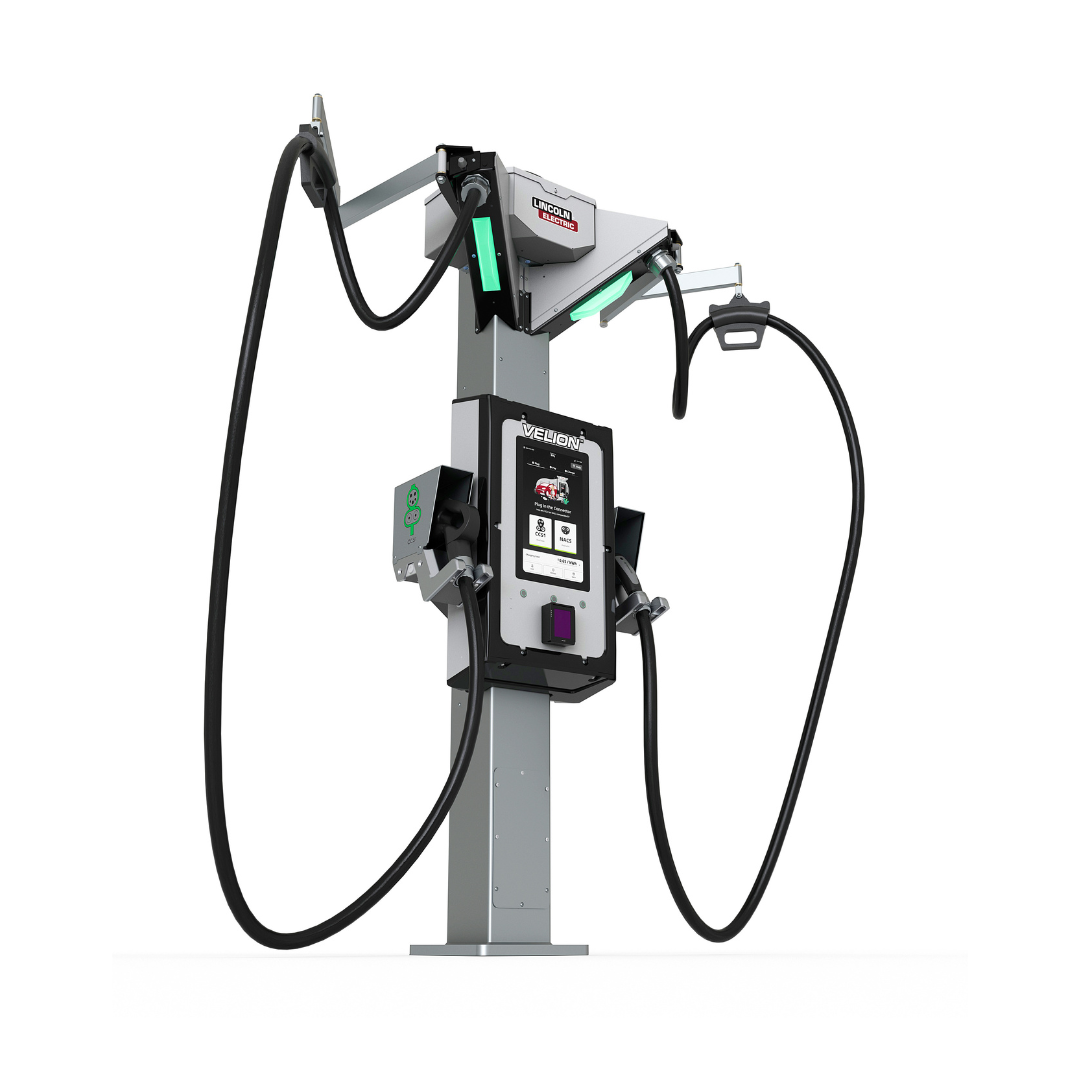

The Velion Single Charge Session EV Charger Dispenser has a CCS1 connector on the left side and a NACS connector on the right side with 15 ft cables capable of delivering 350 amps of current.

With a proven track record of engineering rugged and dependable industrial equipment, Lincoln Electric is delivering the next generation of electric vehicles chargers with the Velion EV Charger. Designed with industrial-grade components, the Velion platform delivers fast charging speeds with unparalleled reliability for the ultimate performance and uptime.

Designed with a focus on modularity, the Velion DCFC chargers are a distributed system with a separate power unit and charging dispenser ideal for public or fleet use. The Velion Single Charge Session Dispenser features a 15 in. LCD high-contrast touch screen along with tactile navigation buttons, integrated payment terminal, ADA compliant adjustable user interface, overhead status indicator light, and a cable management system to support a durable 15 ft. cable with CCS1 connector on the left side and a NACS connector on the right side. Constructed with an 8 in. stainless steel rectangular post, potted PC boards, and NEMA Type 3R enclosure, the Velion Dual Cable Dispenser is built to last. This product is manufactured with steel made and melted in the U.S.A. It complies to Buy America (BA), Buy American (BAA), Build America, Buy America (BABA), and American Iron & Steel (AIS) standards.

Features

• Paired with the Velion Power Tower, the Velion Dispenser is a Level 3 DC Fast Charger guaranteed to deliver consistent and reliable 150kW of power with a 350A continuous operation for fast charging times between 15 to 45 minutes. Dispenser requires Power Tower for operation.
• Industry leading output voltage ranging from 200-1000 VDC that is capable of charging every EV battery.
• Durable 15 ft. cable with integrated cable management system and prevent day to day wear.
• NEMA 3R Enclosure (IP 54 rated) constructed with powder paint coated exterior and potted PC boards that are designed to operate in temperatures ranging from -30 to 50⁰C (-22 to 122⁰F).
• 15 inch LCD high-contrast touchscreen and three tactile navigation buttons ensure a seamless, user-friendly experience. User interface is adjustable at installation to maintain ADA compliance.
• Integrated payment terminal that is RFID, credit card reader and APP capatible.
• Overhead status light to signal whether the terminal is available (green), in use (blue) or out of service (red).
• Proximity sensor to notify operator that the connector has been returned to the dispenser.
• Federal Highway Administration (FHWA) Build America, Buy America compliant that meets NEVI program standards.
• UL 2202, UL 2231-1, UL 2231-2, SAE J1772 and SAE J2894 certified.

Included:

(1) Velion Single Charge Session - CCS1 NACS Dual Cable Dispenser

Click the text below to view the spec sheet

**Velion Brochure**

3 Years, Parts & Labor

Click Below for Lincoln Warranty Statement

**WARRANTY STATEMENT PDF**
