Name: Hypertherm Powermax85 SYNC Plasma Cutter with 50' Hand Torch 087184
Brand: Hypertherm
SKU: 087184
Price: 5600.0 USD
Availability: InStock

Hypertherm Powermax85 SYNC Plasma Cutter with 50&

Price

Quantity

Free 3 Day Shipping on Orders over $99

Free returns

Secure payments

Low stock - 2 items left
Inventory on the way

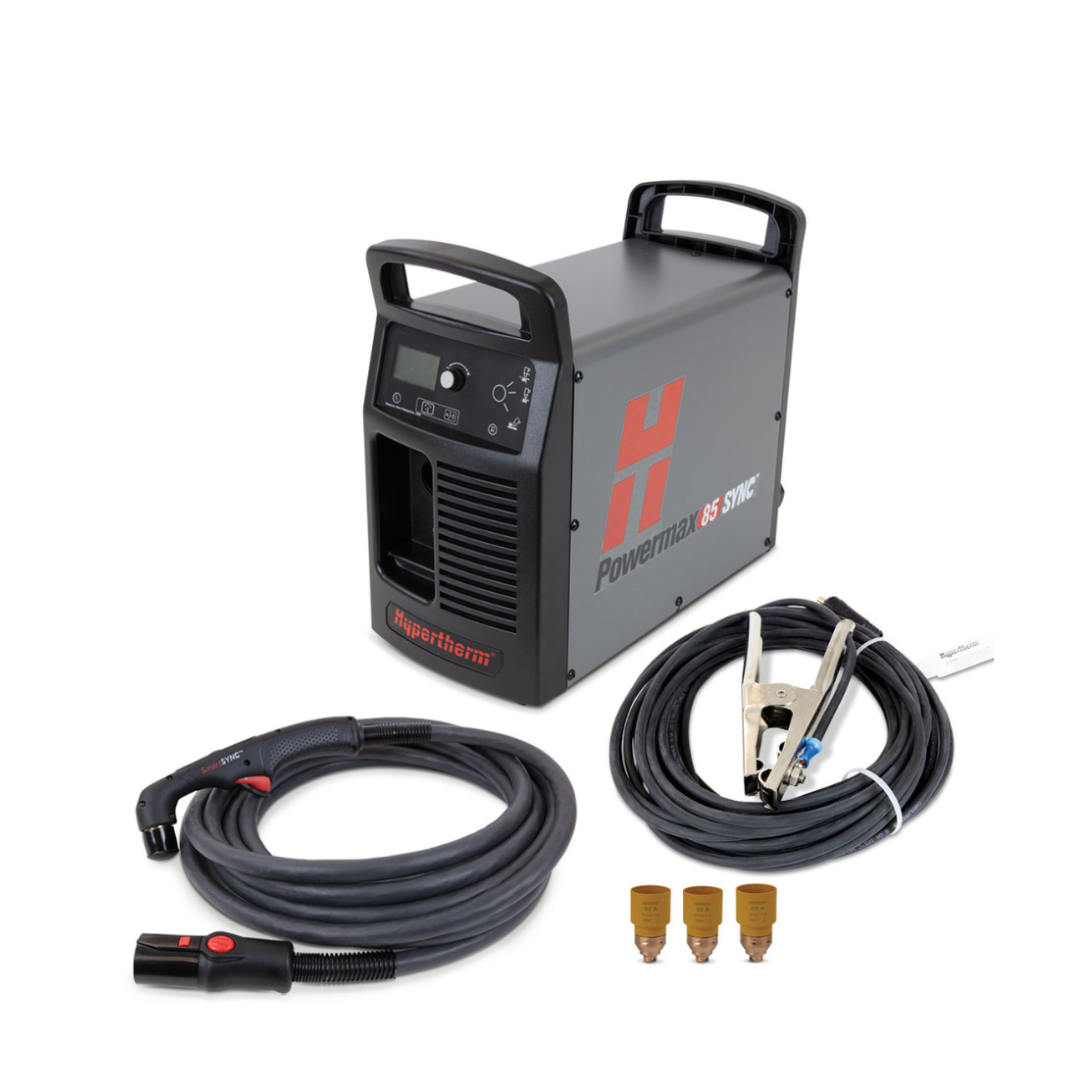

Hypertherm Powermax85 SYNC Plasma Cutter with 50' Hand Torch 087184

Powermax85 SYNC system, 200-600V 1/3-PH, CSA, 75 degree handheld torch, 15.2m (50') lead

The Powermax85 SYNC^® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 25 mm (1″). Features automated system process set-up via advanced RFID-enabled SmartSYNC^® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax85 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.

Easy to use

Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs

Simplified system operation minimizes the time and costs spent on training and troubleshooting.
Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Maximize performance

Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability

SmartSYNC torches are engineered for rugged, industrial environments.
SpringStart™ technology ensures consistent starting and a more reliable torch.
Industry-leading reliability reduces production downtime

Specifications

Cut capacity

Capacity	Thickness	Cut speed
Recommended	25 mm (1″)	500 mm/min (20 ipm)
	32 mm (1-1/4″)	250 mm/min (10 ipm)
Severance (hand cutting)	38 mm (1-1/2″)	125 mm/min (5 ipm)
Pierce*	20 mm (3/4″)

*Pierce rating for handheld cutting, or mechanized cutting with programmable torch height control.

Maximum removal gouging

Capacity	Metal removal rate	Gouge profile
Typical gouge	8,2 kg (18.2 lbs.) per hour	3,5 mm D x 6,6 mm W (0.14″ D x 0.26″ W)

General specifications

Input voltages	CSA 200–480 V, 1-PH, 50/60 Hz 200–600 V, 3-PH, 50/60 Hz CE 380/400 V, 3-PH, 50/60 Hz
Kilowatt output	12.2 kW
Input current	CSA 200/208/240/480, 1-PH 70/68/58/29 A @ 12.2 kW 200/208/240/480/600 V, 3-PH 42/40/35/18/17 A @ 12.2 KW CE 380/400, 3-PH 20.5/19.5 A
Output current	25–85 A
Rated output voltage	143 VDC
Duty cycle @ 104° F	CSA 60% @ 85 A, 230–600 V, 3-PH 60% @ 85 A, 480 V, 1-PH 50% @ 85 A 240 V, 1-PH 50% @ 85 A, 200–208 V, 3-PH 40% @ 85 A, 200–208 V, 1-PH 100% @ 66 A, 230–600 V, 1/3-PH CE 60% @ 85 A, 380–400 V, 3-PH 100% @ 66 A, 380–480 V, 3-PH
Open circuit voltage (OCV)	CSA: 305 VDC CE: 270 VDC
Dimensions with handles	483 mm D; 233 mm W; 430 mm H (19″ D; 9.2″ W; 17″ H)
Weight w/7.6 m (25′) torch	CSA: 32 kg (67 lbs.) CE: 23.5 kg (52 lbs.)
Gas supply	Clean, dry, oil-free air or nitrogen
Optimum inlet gas pressure	7.6–8.3 bar (110–120 psi)
Minimum inlet gas pressure	5.2 bar (75 psi)
Recommended inlet gas flow rate	Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi) Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)
Input power cable length	3 m (10′)
Power supply type	Inverter–IGBT
Engine drive requirement	20 kW for full 85 A output
Electrical efficiency	91.9%
Certifications	CSA – for use in the Americas and Asia, except China CE – for use in Europe, Australia & New Zealand - RCM, Serbia, UK - UKCA, Ukraine, and other countries where accepted. CCC – for use in China
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty
