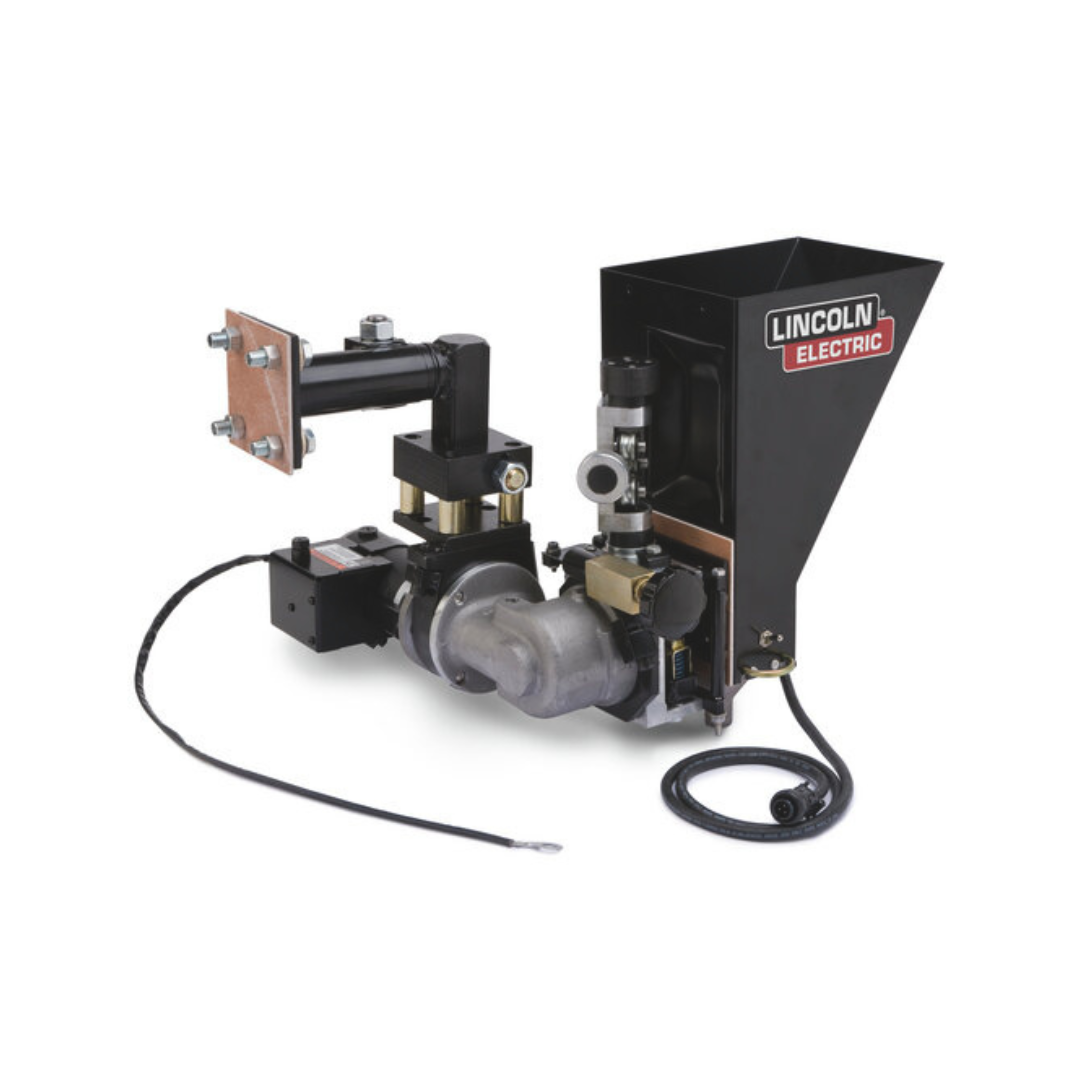

Lincoln Electric MAXsa® 22 Feed Head K2370-2

Details

Submerged Arc Hard Automation Feed Head

Designed specifically for hard automation applications, the MAXsa® 22 Feed Head delivers accurate wire feeding of large diameter submerged arc wires. Based on Lincoln Electric's proven gearbox and cast aluminum feedplate, the MAXsa® 22 model features a 40VDC permanent magnet, high torque motor that delivers plenty of traction to push up to 7/32 in. (5.6 mm) diameter solid wire. A top speed of up to 500 ipm (12.7 m/min) can be achieved by changing the gear ratio.

Features

• Flexible Configuration - Can be used in single, tandem, Twinarc, or multiple arc applications.
• Closed Loop Speed Control - Facilitates full control over starting, running, and stopping wire feed speed.
• Wide Range of Wire Feed Speed – Gear ratio conversion kits allow for a wide range of WFS capabilities to match the requirements of your application.
• Rotatable feed head allows flexible, accurate setup for fixturing.
• Standard Accessories – Including an adjustable wire straightener, cross-seam adjuster, electrical valve flux hopper, and mounting bracket for TC-3 carriage.

Included:

(1) MAXsa® 22 Feed Head

(1) Adjustable Wire Straightener

(1) Cross-Seam Adjuster

(1) Electric Flux Hopper

(1) Mounting Bracket for TC-3 Carriage

Click the text below to view the spec sheet

**Submerged Arc Equipment Product Info PDF**

5 Year Warranty

Click Below for Lincoln Warranty Statement

**WARRANTY STATEMENT PDF**
