Rugged and reliable engineering
-Consistent feeding over long conduit runs
-Handles large-diameter wires (up to 3/32 in. (2.4 mm) solid or .120 in. (3.2 mm) cored wire), well beyond the competition’s 5/64-in. capacity
-Gun adapters provide superior electrical connections reducing voltage drops and simplifying connections
-Wire drive circuit board is encapsulated for maximum protection from the elements
Superior process control
-Digital preset for voltage and wire feed speed
-Save repeated procedures in up to four user memories
-Process limits can be set and passcode secured
-Displays actual voltage and current while welding
Safety with every process
-Single wire drive model feeders can be ordered with an electrically isolated stud for arc gouging operations
-Dual wire drive model can be ordered with a Power Path™ contactor that electrically isolates the non-active wire drive and gun
-User selectable wire retract function physically retracts the wire back into the nozzle to prevent operator injury
Advanced MaxTrac® wire drive design
-Rugged cast aluminum feed plate protects wire and ensures consistent wire feeding
-Patented tool-less drive rolls make adjustments and maintenance quick and easy
-Patented tool-less split wire guides ensure uninterrupted feed and prevents birdnesting
-Modular design provides flexibility of configurations
Configure for single, dual, bench or boom setups (convert as workspace needs change)
Two available wire reel stands; standard (up to 44-lb. spools) or heavy duty (up to 60-lb. coils or spools)
Built-in interface for hard automation

Features

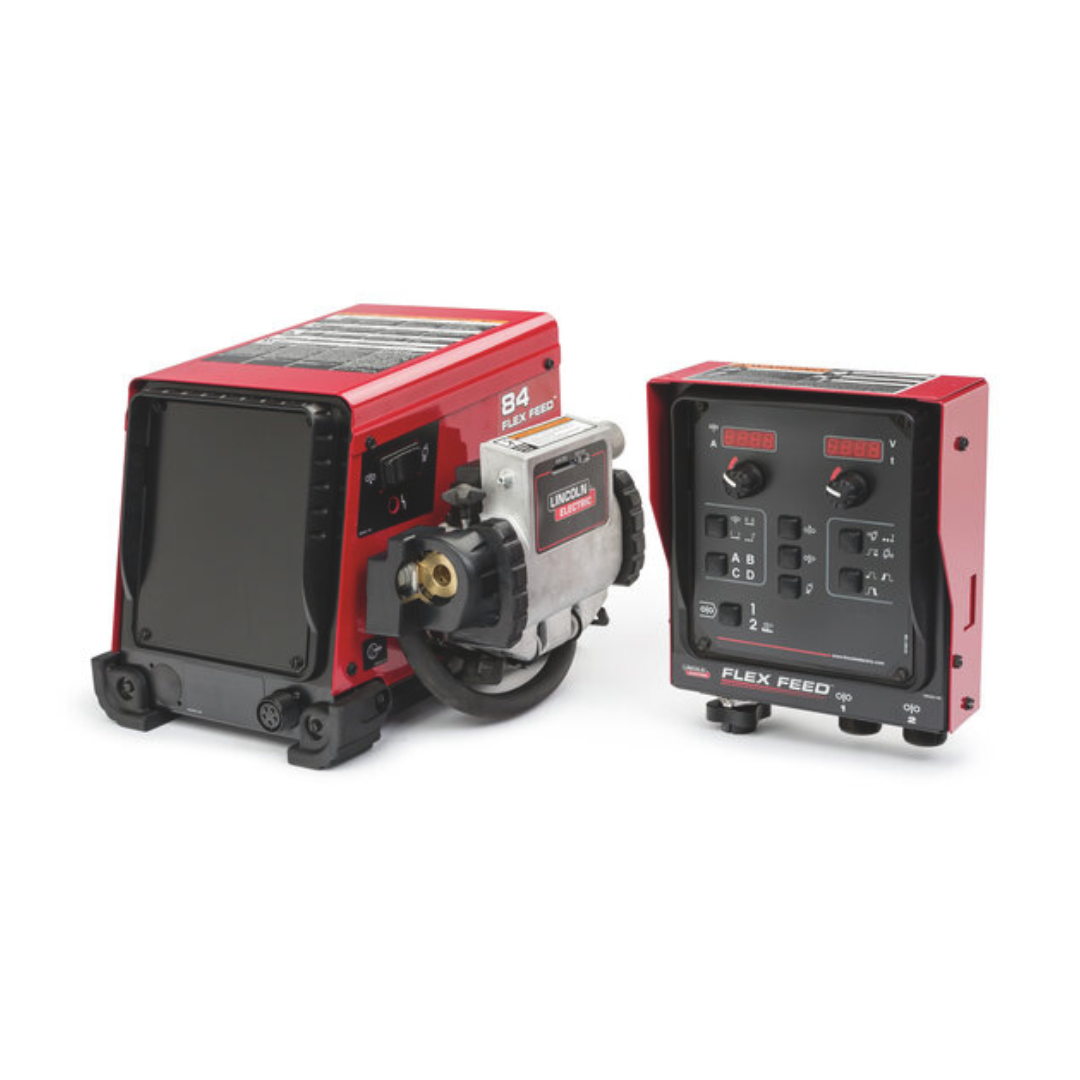

• Single wire drive boom configuration
• Includes separate UI
• Four Memory locations for saving and quick recall of weld schedules.
• Advanced MaxTrac® 4-roll wire drive design
• Modular design provides flexibility of configurations

• Specifications

  Product Weights & Dimensions

  Dimensions (H x W x D)	16.5 in x 15.5 in x 28 in (419 mm x 394 mm x 711 mm)
  Net Weight	56 lbs (25.4 kg)

  Machines

  Max Rating

  600 A

  Wire and TIG Feeders

  Number of driven rolls	4 rolls
  Feeder type	Bench
  Configuration	Single
  Max spool diameter	Drum
  Communication Technology	analog
  UI type	Meters
  Max Rated Output Capable	600A
  Max Wire Diameter (Solid)	3/32 in (2.4 mm)
  Max Wire Diameter (Cored)	0.120 in (3 mm)
  Feedhead Configuration	Single
  Wire Configuration	Single
  Power Source to Feeder Communication Connector Type	14-pin
  Gun Bushing	Tweco #2-#4
  Max Spool Size (lbs)	60
  Max Spool Size (kg)	30
  Wire Feeders Processes	MIG Flux Cored
  More Information	WFS 50-750 IPM
  Safety Listing CSA	Yes
  Safety Listing UL	Yes

  Basic Specification

  Input Voltage

  24-42 VAC

  Application

  Typical Application

  Heavy Fabrication Structural Fabrication

  Warranty

  Warranty

  3 Years
