Draw Dog, Carbon Steel, 3/4" Thick, Weld-On Clamp AS-DDC34
Details

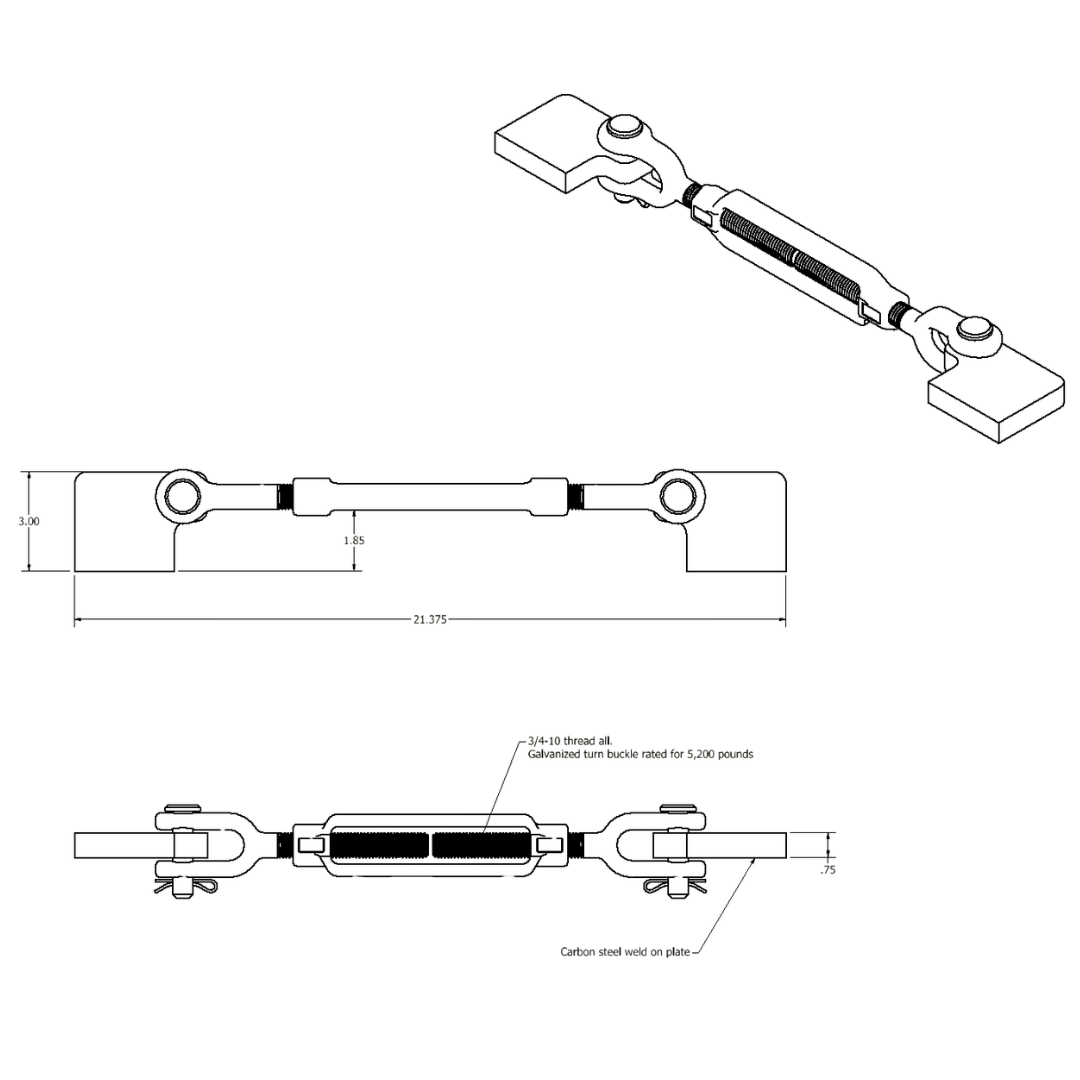

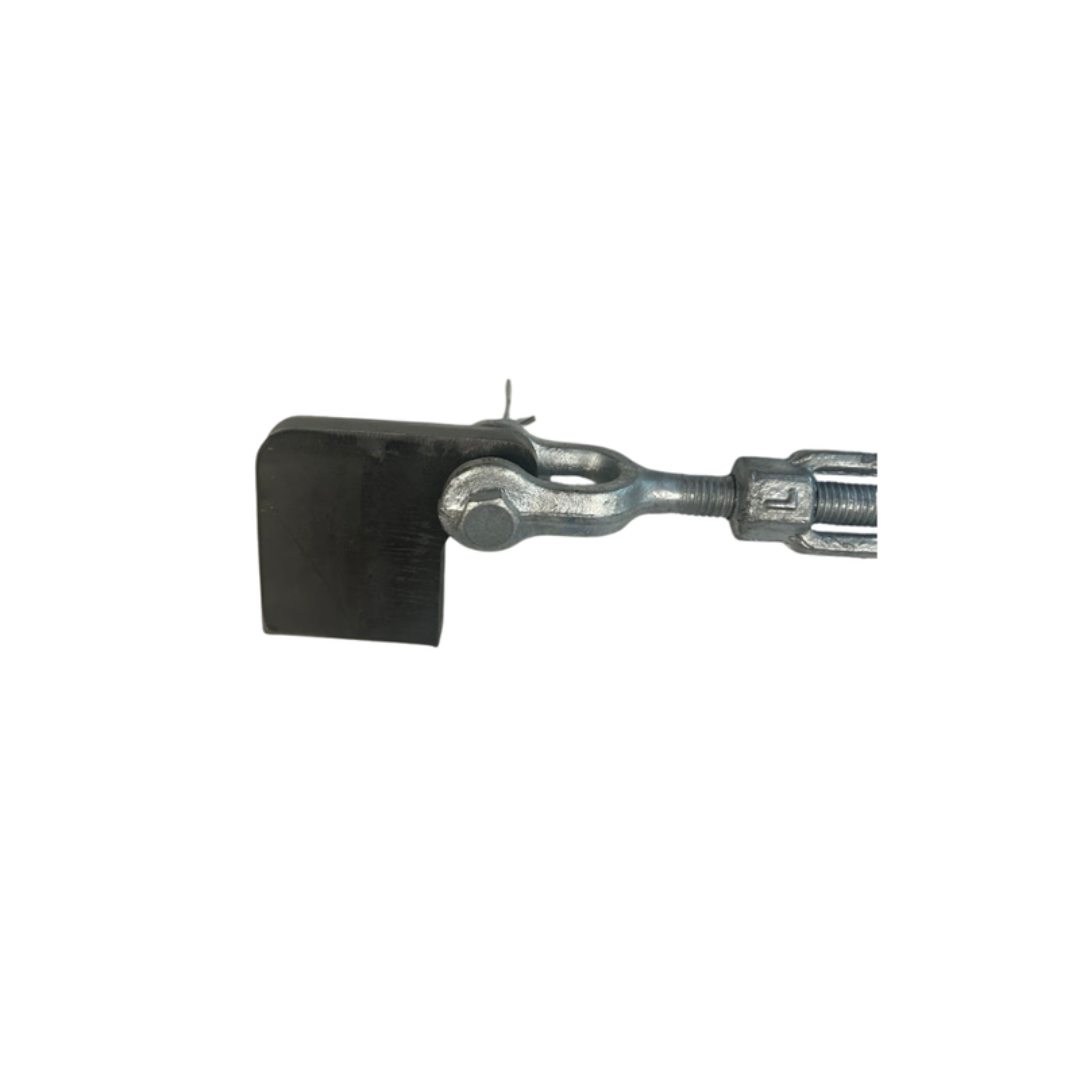

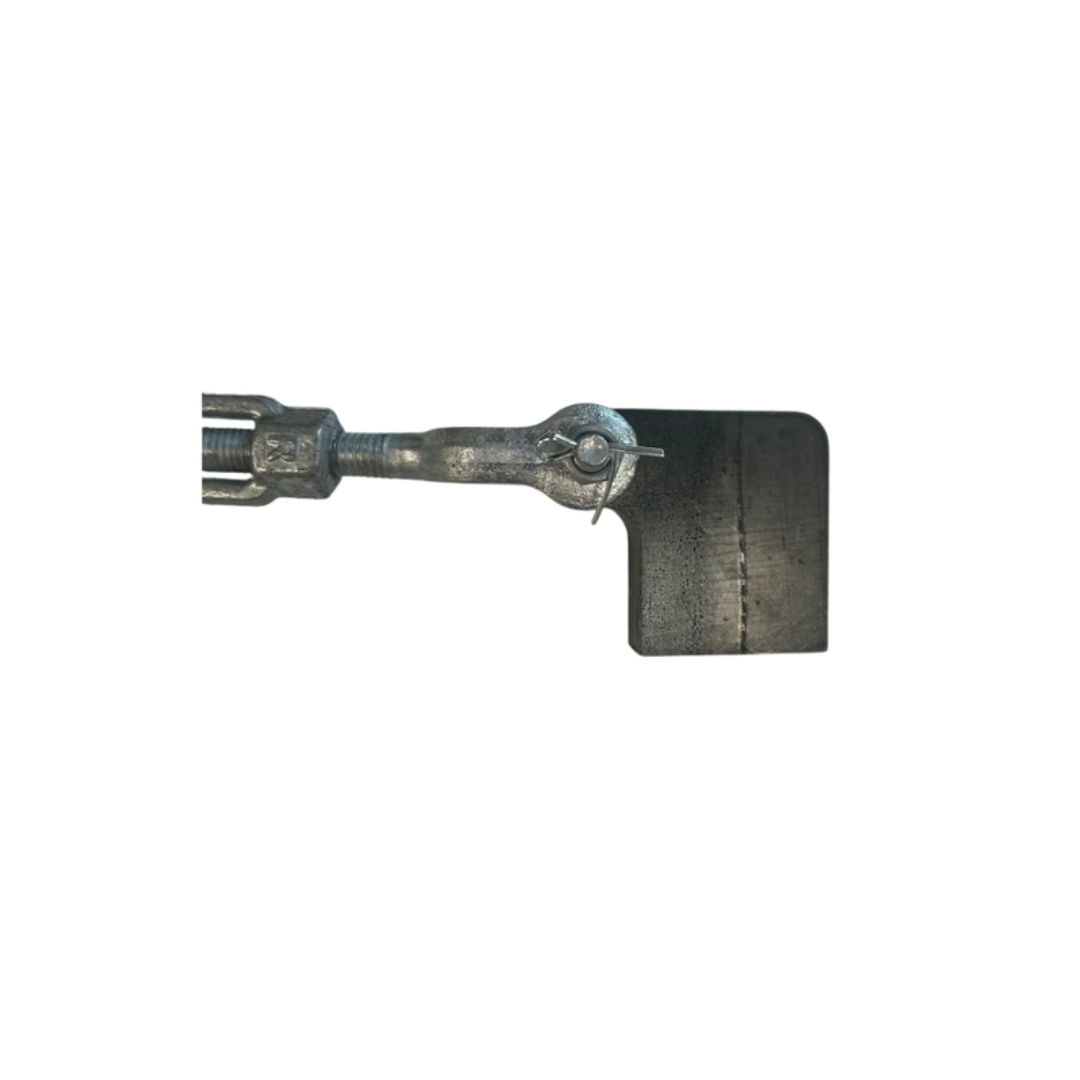

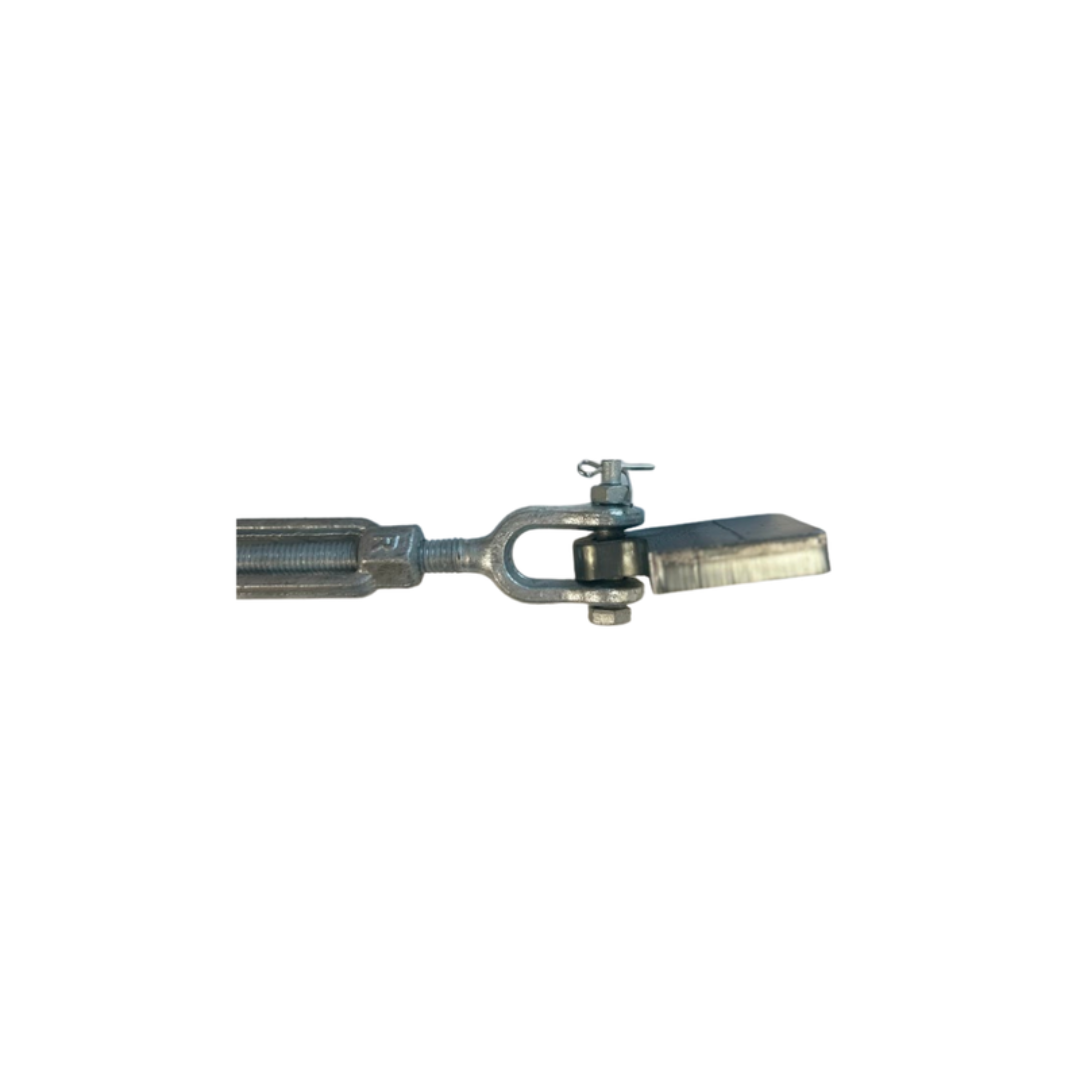

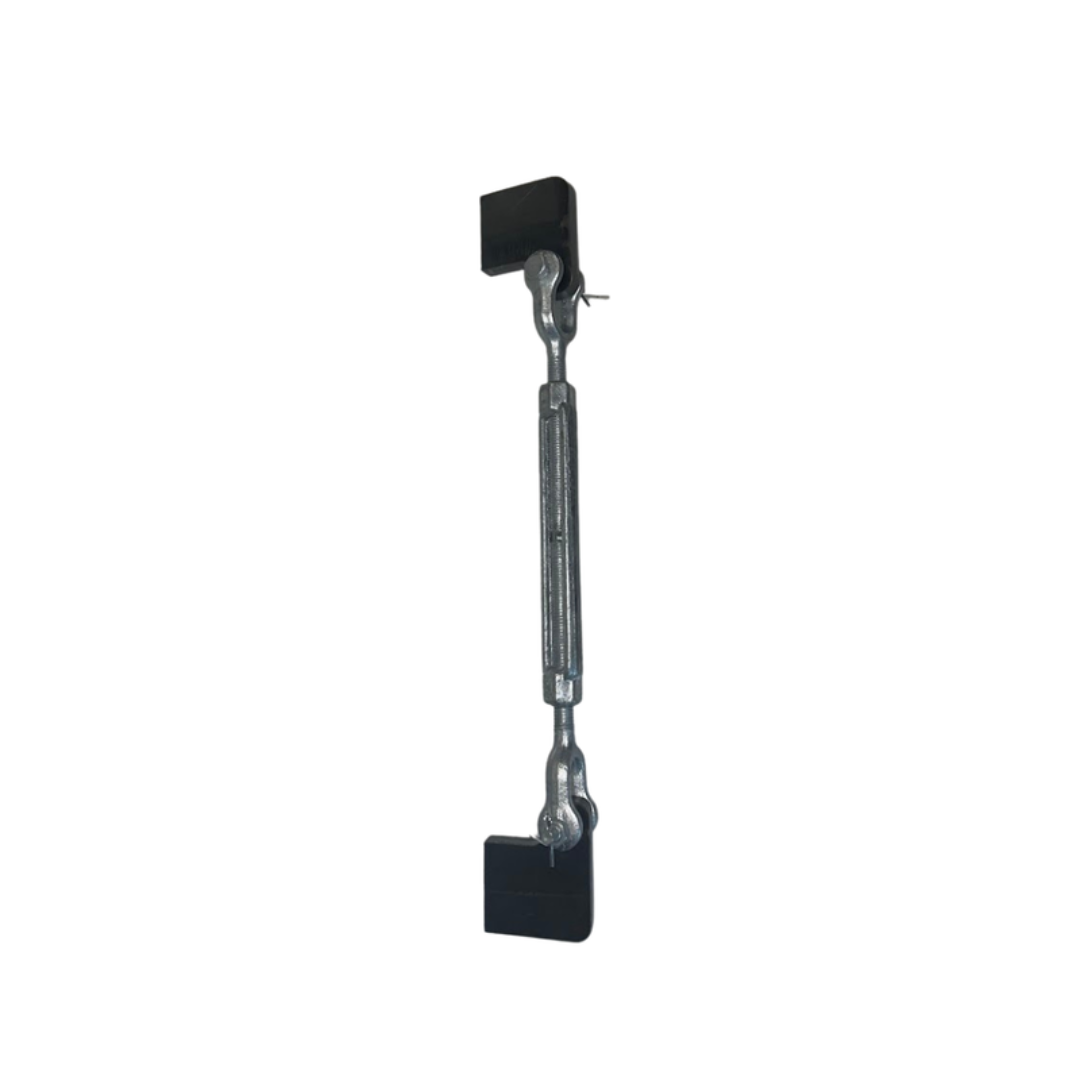

The Draw Dog AS-DDC34 is a heavy-duty pipe alignment clamp designed to help align pipe, tubing, and steel fittings during welding and fabrication. Constructed from 3/4" thick carbon steel, this weld-on alignment tool provides a strong and durable method for correcting gaps and positioning components before welding.
This weld-on clamp is designed for applications where two pipes or steel components have a gap that is either larger or smaller than the required fit-up. One end of the Draw Dog is welded to the first pipe or component, while the other end is welded to the second. Once installed, the turnbuckle mechanism provides controlled tension or compression to help bring the components together or push them farther apart.
As a pipe fit-up clamp, the Draw Dog helps welders achieve proper alignment and positioning before completing the weld. Its 3/4" thick carbon steel construction is suited for demanding fabrication environments, while the tension-and-compression mechanism allows for controlled adjustments. This makes it useful for pipe fabrication, steel fitting alignment, welding, maintenance, and repair applications.
The Draw Dog is also commonly referred to as a weld dog, pipe dog, weld-on dog, or alignment dog, making it a versatile addition to professional welding and fabrication toolkits.
Features
- Heavy-Duty 3/4" Carbon Steel Construction: Made from 3/4" thick carbon steel for a rugged, durable design suited to demanding welding and fabrication applications.
- Weld-On Clamp Design: Allows the Draw Dog to be securely attached to pipe or steel components for controlled alignment during welding.
- Pipe Alignment Clamp: Provides a practical solution for aligning pipes, tubing, and steel fittings when preparing components for welding.
- Pipe Fit-Up Clamp: Helps achieve proper pipe fit-up by allowing components to be pulled closer together or pushed farther apart as needed.
- Controlled Tension and Compression: The integrated turnbuckle mechanism provides controlled adjustment in both tension and compression.
- Helps Correct Pipe Gaps: Designed for situations where the gap between two pipes or components is larger or smaller than the required fit-up.
- Adjustable Component Positioning: Allows welders to bring components closer together or push them farther apart to achieve the desired fit-up before welding.
- Ideal for Welding and Fabrication: Suitable for pipe fabrication, steel fitting alignment, maintenance, repair, and general welding applications.
- Multiple Names: Also known as a weld dog, pipe dog, weld-on dog, or alignment dog.
*Call us for custom sizes or orders!
