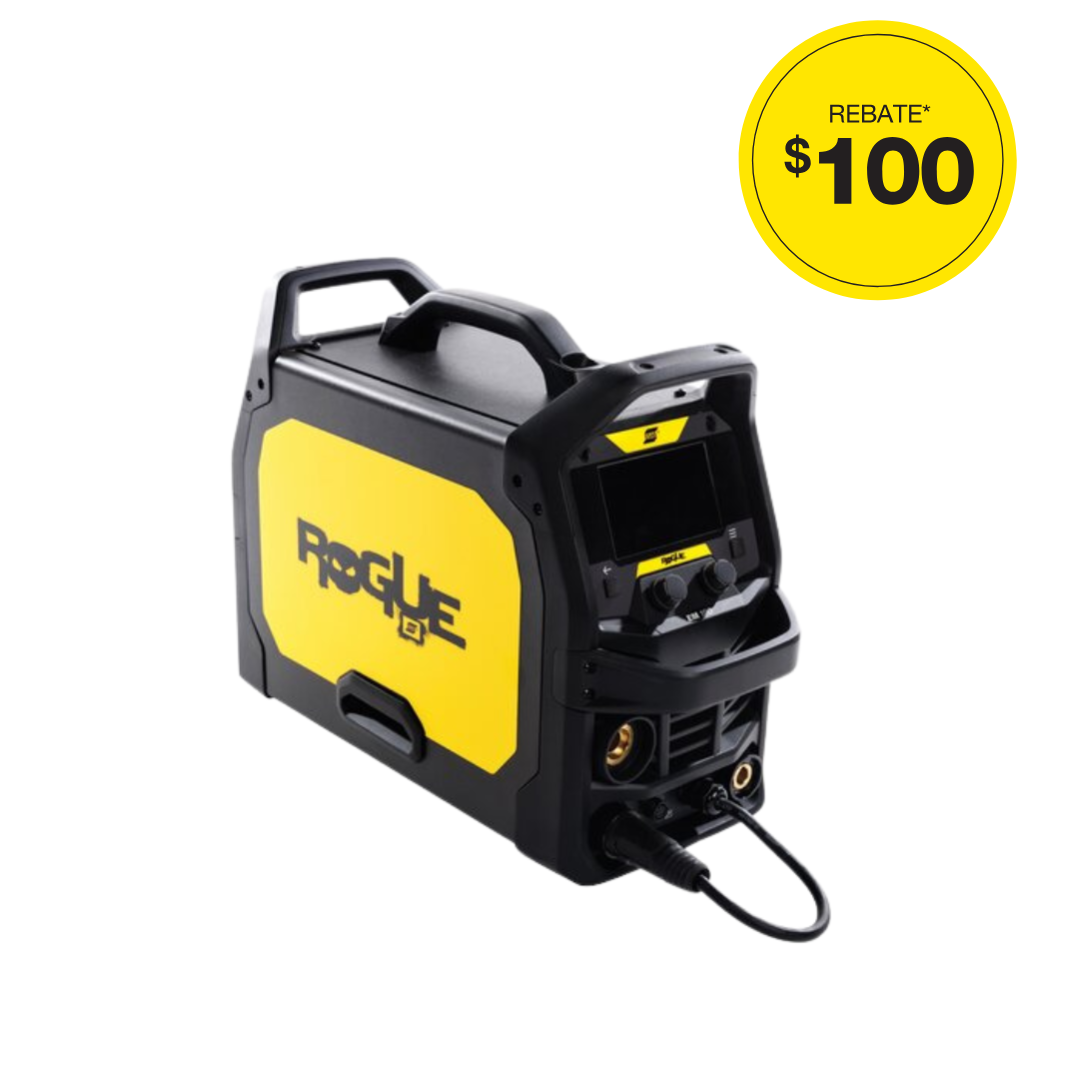

ESAB Rogue EM 190 PRO MIG/MAG Welder 0700301083

Details

ESAB Rogue EM 190 PRO is an inverter-based MIG/MAG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.With a weight of only 16.9 kg (37.3 lbs), single voltage input, 230V single-phase and compatibility with 11 kVA (10 kW) generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Features

• Full feature MIG/MAG machine for Synergic MIG/MAG, Manual MIG/MAG, MIG Brazing, Flux-Cored
• Intuitive 5.0 in TFT screen offers clear views with direct interaction
• Synergic Weld Programs (27) – full range of welding parameters, 0.5 – 10.0 mm (0.020 – 0. 375 in) with single knob control
• Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
• Unique rugged industrial design – supporting multiple lift points and cable management
• Arc Dynamics – fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
• Jobs – 10 memory save/recall function
• Spool Gun Ready – Rogue automatically configures set up when spool gun is connected
• Multi-language display – configure the display to 1 of 29 languages
• Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption.
• IP23S rated for indoor/outdoor use

Included:

(1) 190A MIG/MAG Power Source

(1) Tweco® Fusion 180 MIG/MAG Torch, 3 m (10 ft)

(1) Victor® Gas Regulator/Flow Gauge

(1) Return Cable Kit, 16 mm² with OKC 50 Connector, 3 m (10 ft)

(1) Gas Hose, 3 m (10 ft)

(1) 1 kg (2.2 lb) Spool of ESAB OK AristoRod® 12.50, 0.8 mm (0.030 in.) Wire

(1) 0.6/0.8 mm (0.023/0.030 in.) V-Groove Feed Roll (Installed)

(1) 0.8/0.9 mm (0.030/0.035 in.) V-Groove Feed Roll

(1) 0.8/0.9 mm (0.030/0.035 in.) Knurled V-Groove Feed Roll

(1) 0.6 mm (0.023 in.) Contact Tip

(1) 0.8 mm (0.030 in.) Contact Tip

(1) 0.9 mm (0.035 in.) Contact Tip

(1) Instruction Manual Set

Click the text below to view the spec sheet

**Rogue EM 190 PRO (EN-ZZ) PDF **
