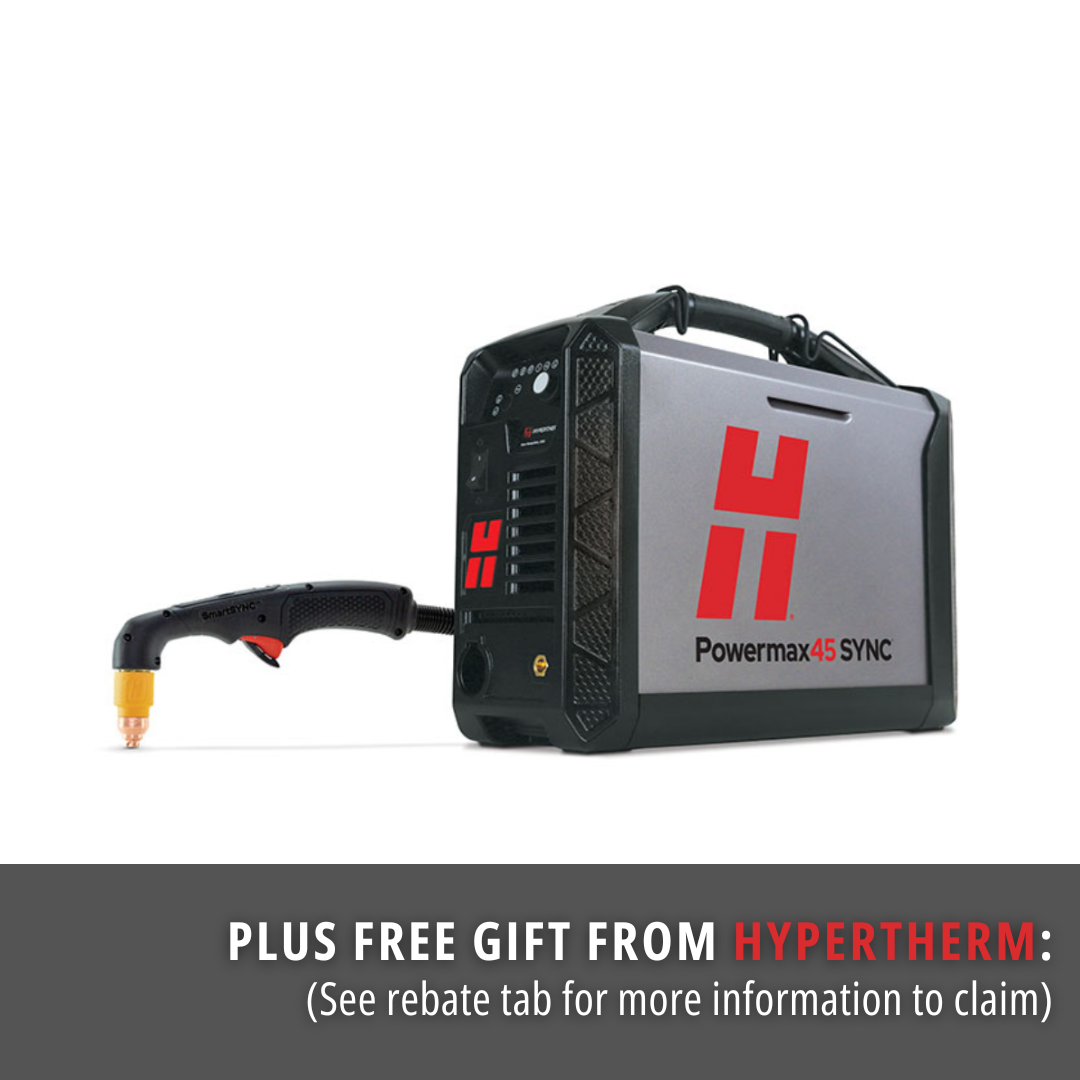

Hypertherm Powermax45 SYNC Plasma Cutter 230V CSA Power Supply with CPC Port and Voltage Divider (088583) w/Free Cartridge Reader & Gifts

Hypertherm Powermax45 SYNC Plasma Cutter 230V CSA Power Supply with CPC Port and Voltage Divider (088583) w/Free Cartridge Reader & Gifts
Hypertherm Powermax45 SYNC Plasma Cutter 230V CSA Power Supply with CPC Port and Voltage Divider (088583) w/Free Cartridge Reader & Gifts
Hypertherm Powermax45 SYNC Plasma Cutter 230V CSA Power Supply with CPC Port and Voltage Divider (088583) w/Free Cartridge Reader & Gifts
Hypertherm Powermax45 SYNC Plasma Cutter 230V CSA Power Supply with CPC Port and Voltage Divider (088583) w/Free Cartridge Reader & Gifts
Hypertherm Powermax45 SYNC Plasma Cutter 230V CSA Power Supply with CPC Port and Voltage Divider (088583) w/Free Cartridge Reader & Gifts

Hypertherm Powermax45 SYNC Plasma Cutter 230V CSA Power Supply with CPC Port and Voltage Divider (088583) w/Free Cartridge Reader & Gifts

Regular price $4,125.00
/
Shipping calculated at checkout.
  • Free 3 Day Shipping on Orders over $99
  • Free returns
  • Secure payments
  • Low stock - 2 items left
  • Inventory on the way

Hypertherm Powermax45 SYNC Plasma Cutter 230V CSA Power Supply with CPC Port and Voltage Divider (088583) w/Free Cartridge Reader & Gifts

***PICK UP A POWERMAX FOR THE HOLIDAYS AND REDEEM END-USER PROMOs.***
View details at https://myhyperperks.com
Claim a FREE promo package valued at up to $1,000!
Put a little in your pocket. Pick up a Powermax® before the end of the year and get a consumable/accessories promo package valued at up to —FREE. This holiday season, invest in yourself and the new year.

***To receive your free cartridge
reader, visit this website https://myhyperperks.com/ to redeem only with purchase of Powermax45 SYNC. Valid from September 1, 2024 - February 28, 2025***

For metal workers who want the most versatile system available to gouge, cut, and mark, Powermax45 SYNC delivers the best return on investment with a patented single-piece cartridge, up to 5x longer consumable life, and greater cutting power than higher-amperage competitors.

Simplify operations and boost productivity

  • Simplified system operation minimizes the time and costs spent on training and troubleshooting.
  • Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
  • Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Easy to use

  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
  • RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
  • End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
  • Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.


Maximize performance

  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
  • Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability

  • SmartSYNC torches are engineered for rugged, industrial environments.
  • SpringStart™ technology ensures consistent starting and a more reliable torch.
  • Industry-leading reliability reduces production downtime.


Specifications

Cut capacity

Capacity Thickness Cut speed
Recommended 16 mm (5/8″) 500 mm/min (20 ipm)
Severance (hand cutting) 29 mm (1-1/8″) 125 mm/min (5 ipm)
Pierce* 12 mm (1/2″)

*Pierce rating for handheld use or with automatic torch height control.



Maximum removal gouging

Capacity Metal removal rate Groove profile
Typical gouge 3.4 kg (7.5 lbs.) per hour 3.2 mm D x 6.8 mm W (0.12″ D x 0.26″ W)

General specifications

Input voltages

CSA

200–440 V, 1-PH, 50/60 Hz

480 V, 3-PH, 50/60 Hz

480 V, 3-PH, 10 A @ 6.9kW



CE

230 V, 1-PH, 50/60 Hz

400 V, 3-PH, 50/60 Hz

Kilowatt output

6.9 kW

Input current

CSA

200-240 V, 1-PH 39/32 A @ 6.5 kW



CE

230 V, 1-PH, 33 A

400 V, 3-PH, 10 A

Output current

9–45 A

Rated output voltage

155 VDC

Duty cycle @ 104° F

CSA

50% @ 45 A, 200–240 V, 1-PH

60% @ 41 A, 200–240 V, 1-PH

100% @ 32 A, 200–240 V, 1-PH

50% @ 45 A, 480 V, 3-PH

60% @ 41 A, 480 V, 3-PH

100% @ 32 A, 480 V, 3-PH



CE

50% @ 45 A, 230 V, 1-PH

60% @ 41 A, 230 V, 1-PH

100% @ 32 A, 230 V, 1-PH

50% @ 45 A, 400 V, 3-PH

60% @ 41 A, 400 V, 3-PH

100% @ 32 A, 400 V, 3-PH

Open circuit voltage (OCV)

CSA

275 VDC 200-240 V

275 VDC 480 V



CE

265 VDC 400 V

Dimensions with handles

442 mm D; 173 mm W; 357 mm H (17.4″ D; 6.8″ W; 14.1″ H)

Weight w/6.1 m (20′) torch

CSA

14 kg (31 lbs.)



CE

15 kg (33 lbs.)

Gas supply

Cutting: air (clean, dry, and oil-free), nitrogen, F5

Gouging: air (clean, dry, and oil-free), nitrogen, F5

Marking: air (clean, dry, and oil-free)

Recommended gas inlet flow rate/pressure

188 I/min @ 5.9 bar (400 scfh @ 85 psi)



Input power cable length

3 m (10′)

Power supply type

Inverter – IGBT

Engine drive requirement

12.5 kVA (10 kW) for full 45 A output

Electrical efficiency

90%

Certifications

CSA - certified for use in the Americas and Asia, except China

CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia,
Ukraine, and other countries where accepted.
Also RCM, Ukraine, and Serbian. UKCA – Great Britain

Warranty

Power supplies have a 3-year warranty and torches a 1-year warranty
