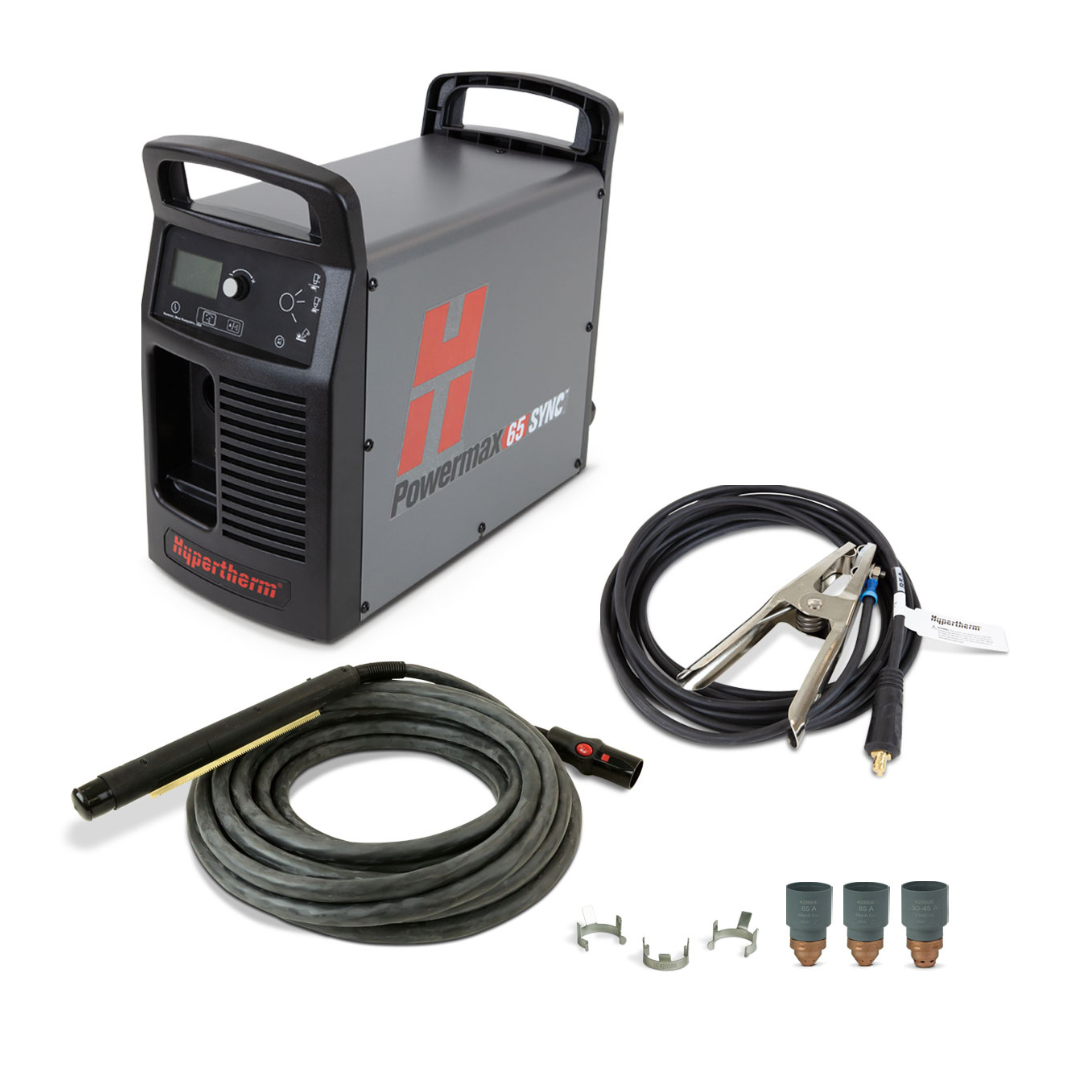

Hypertherm Powermax65 SYNC Plasma Cutter with 25' Machine Torch 083349

Powermax65 SYNC system, 200-600V 1/3-PH, CSA, CPC port, 180 degree machine torch, 7.6m (25') lead

The Powermax65 SYNC^® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 20 mm (3/4″). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC^® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax65 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management

Easy to use

Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs

Simplified system operation minimizes the time and costs spent on training and troubleshooting.
Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Maximize performance

Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability

SmartSYNC torches are engineered for rugged, industrial environments.
SpringStart™ technology ensures consistent starting and a more reliable torch.
Industry-leading reliability reduces production downtime.

Specifications

Cut capacity

Capacity	Thickness	Cut speed
Recommended	20 mm (3/4″)	500 mm/min (20 ipm)
	25 mm (1″)	250 mm/min (10 ipm)
Severance (hand cutting)	32 mm (1-1/4″)	125 mm/min (5 ipm)
Pierce*	16 mm (5/8″)

*Pierce rating for handheld cutting, or mechanized cutting with programmable torch height control.

Maximum removal gouging

Capacity	Metal removal rate	Groove profile
Typical gouge	4,0 kg (8.8 lbs.) per hour	2,9 mm D x 6,4 mm W (0.11″ D x 0.25″ W)

General specifications

Input voltages	CSA 200–480 V, 1-PH, 50/60 Hz 200–600 V, 3-PH, 50/60 Hz CE 380–400 V, 3-PH, 50/60 Hz
Kilowatt output	9 kW
Input current	CSA 200/208/240/480 V, 1-PH 52/50/44/22 A @ 9 kW 200/208/240/480/600 V, 3-PH 32/31/27/13/13 A @ 9 kW CE 380/400 V, 15.5/15 A @ 9 kW
Output current	20–65 A
Rated output voltage	139 VDC
Duty cycle @ 104° F	CSA 50% @ 65 A, 230–600 V, 1/3-PH 40% @ 65 A, 200–208 V, 1/3-PH 100% @ 46 A, 230–600 V, 1/3-PH CE 50% @ 65 A, 380–400 V, 3-PH 100% @ 46 A, 380–400 V, 3-PH
Open circuit voltage (OCV)	CSA: 295 VDC CE: 270 VDC
Dimensions with handles	483 mm D; 233 mm W; 430 mm H (19″ D; 9.2″ W; 17″ H)
Weight w/7.6 m (25′) torch	CSA: 29 kg (61 lbs.) CE: 24.1 kg (52.7 lbs.)
Gas supply	Clean, dry, oil-free air or nitrogen
Optimum inlet gas pressure	7.6–8.3 bar (110–120 psi)
Minimum inlet gas pressure	5.2 bar (75 psi)
Recommended inlet gas flow rate	Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi) Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)
Input power cable length	3 m (10′)
Power supply type	Inverter – IGBT
Engine drive requirement	15 kW for full 65 A output
Electrical efficiency	91.2%
Certifications	CSA – for use in the Americas and Asia, except China CE – for use in Europe, Australia & New Zealand - RCM, Serbia, UK - UKCA, Ukraine, and other countries where accepted. CCC – for use in China
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty
