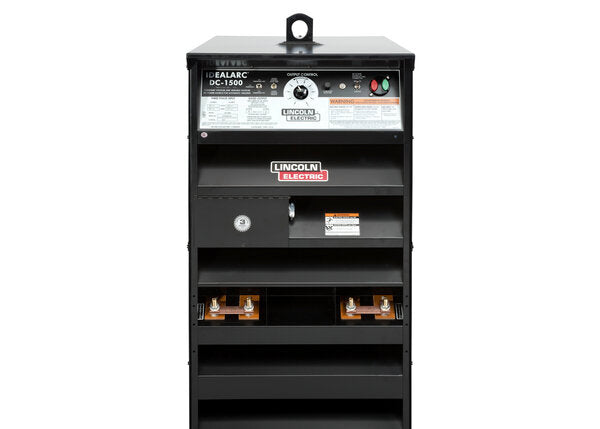

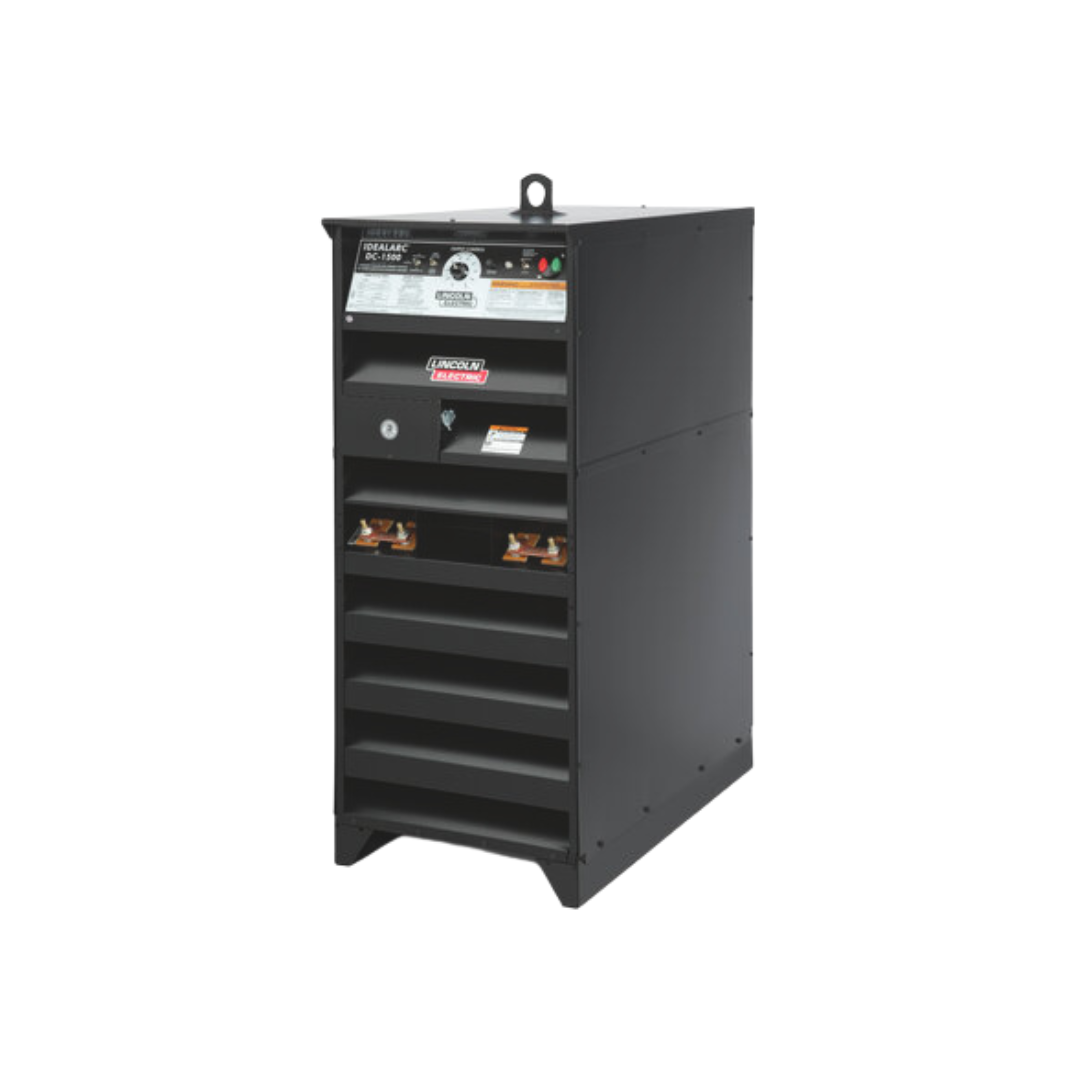

Lincoln Electric Idealarc® DC-1500 Subarc Welder K1275

Details

The DC-1500 is a multiprocess DC arc welding power source for automatic welding applications. It produces outstanding arc characteristics on both constant voltage and constant current processes. This provides great welding versatility in a single power source.

The DC-1500 is designed for submerged arc welding, and FCAW processes within the capacity of the machine. It produces outstanding welding performance with a single range full output control potentiometer.

The precise output of the DC-1500 enhances productivity and quality control when used with Lincoln NA-3 and NA-5 automatic wire feeders, and the LT-7 tractor.

Solid state circuitry provides extra ling life for repetitive welding applications.

Full range output voltage control for easy operation and precise output control.

Mode switch used to select the desired output characteristics for the process being used.

Line voltage compensation for maintaining weld consistency, even with line voltage changes of ±10%.

Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.

Function lights built into the printed circuit boards speed diagnostics.

Windings and rectifiers protected against moisture and corrosive environments.

Eight amp fuse protected 115V wire feeder auxiliary power with 1000 volt-amp capacity.

Three-year warranty on parts and labor.

Seven-year warranty on the power rectifier.

Manufactured under a quality system certified to ISO 9001 requirements and ISO 14001 environmental standards.

Features

• Line voltage compensation for maintaining weld consistency, even with line voltage changes of ±10%.
• Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.
• Windings and rectifiers protected against moisture and corrosive environments.
• Three-year warranty on parts and labor; seven-year warranty on the power rectifier.

Included:

(1) Idealarc® DC-1500 power source

Click the text below to view the spec sheet

**Idealarc DC-1500 Product Info PDF**

3 Year Warranty

Click Below for Lincoln Warranty Statement

**WARRANTY STATEMENT PDF**
