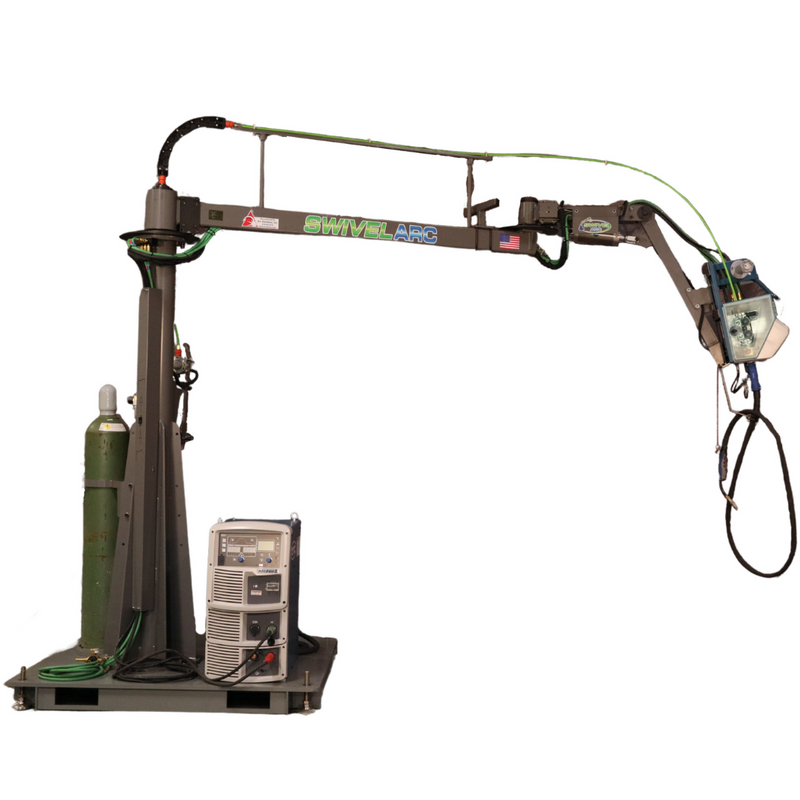

Swivel Arc (previously known as Wizard Boom) Welding Boom Arm - 15-foot Welding Boom with Pedestal Mount

Details

12-foot long articulating Swivel Arc welding boom with a pedestal mount.

Assembly required
Lead times may vary
Bulk discounts on quantities of 6 or more are available

Arc Solutions proudly introduces the Swivel Arc welding boom, a flexible and high-performance welding boom arm engineered for precise and efficient wire delivery across aluminum, steel, and stainless steel applications. The Swivel Arc's fully articulated arms, featuring robust bearings, allow for up to 280° rotation, giving you unmatched reach and control. With specialized aluminum and steel options, the Swivel Arc transforms your welding process by enabling a 33' reach for aluminum and a 45' reach for steel, all without the need for a push-pull gun.

Features

  • Extended Reach: Achieve up to 33 feet of reach for aluminum and 45 feet of reach for steel applications, ideal for large-scale welding projects where flexibility is crucial.
  • Aluminum Advantage: Feed 4043 and 5356 aluminum wire without the need for a push-pull gun, which enhances efficiency and reduces equipment requirements.
  • Fully Articulated Arms: Equipped with tapered bearings in both primary and secondary arms, allowing for smooth, controlled movement and a full range of motion.
  • Optional Air Brakes: Each rotating joint features optional air brakes, enabling you to lock the boom arm in place for precision work at any angle.
  • Drop-Down Feeder: The drop-down feeder, powered by pneumatic cylinders, allows for easy wire changes and maintenance without the need for ladders or complex adjustments.
  • Portable Base: Move the Swivel Arc effortlessly with the optional portable base, designed with forklift pockets for quick and secure transport between workstations.

Click the text below to schedule a demo with Arc Solutions!

**Book A Demo Today**

Included:

(1) 15 ft Swivel Arc Boom

(1) Tapered bearings in the primary and secondary joints to allow for customized stiffness

(1) Column mount to mate with the existing building column

(1) Extended weld cable package including 2/0 weld cable, all appropriate connection points, and 1/4" gas hose to be routed through the boom arm

(1) Wire delivery package (drum or spool use must be confirmed before shipment)

------------------------------------------------------

Extended welder communication cable NOT INCLUDED.

Assembly required

Lead times may vary

Bulk discounts on QTY 6 or more available

Customizations:

Portable Base

Portable bases are 58" square and 6" tall
Base will raise clearance height of boom by 6"
Base only compatible with pedestal option

Pneumatic Feed Assist

Pneumatic Feed Assist (PFA) made by Wire Wizard
Feed assist is required for any aluminum welding applications
Weld wire diameter must be known at time of order

Water Cooled Upgrade

Utilizes Hastings fume collection system for source extraction of weld fumes

Conduit Tool Kit

Includes: Conduit Deburring stone, Conduit Cutter (for plastic conduit), Conduit countersink tool
(for plastic conduit)

Click the text below to view the Swivel Arc brochure

**Swivel Arc Brochure**
